copy of Victron Orion-Tr DC-DC converters - with insulation - 220/240 and 280W
€260.15
Tax included
ORI482441110
0712971135987
Victron Orion DC-DC converters with galvanic isolation 12/12V, 12/24V, 24/12V, 24/24V, 24/48V, 48/12V, 48/24V and 48/48V.
Victron converters for safe transformation of system voltage into another stable voltage.
Several models available: to raise or lower the voltage.
Please select your model in the options.

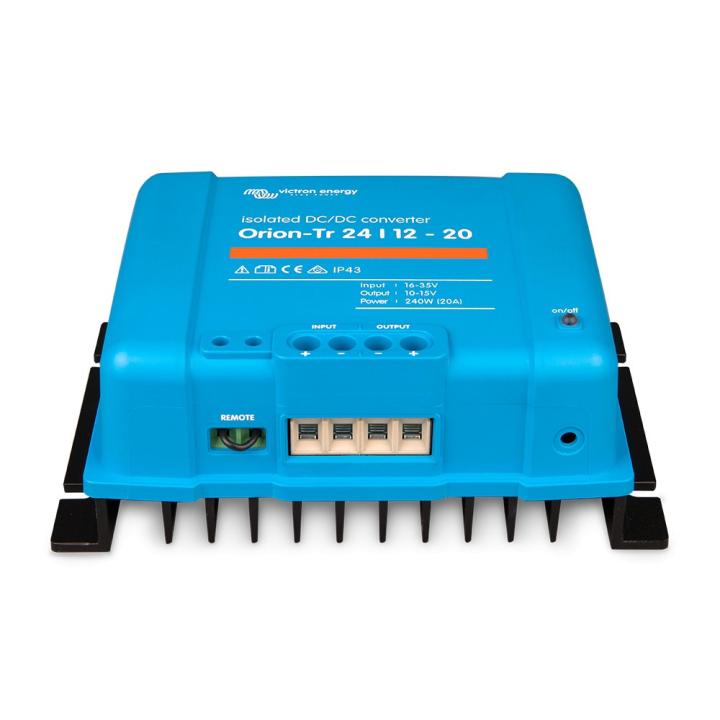

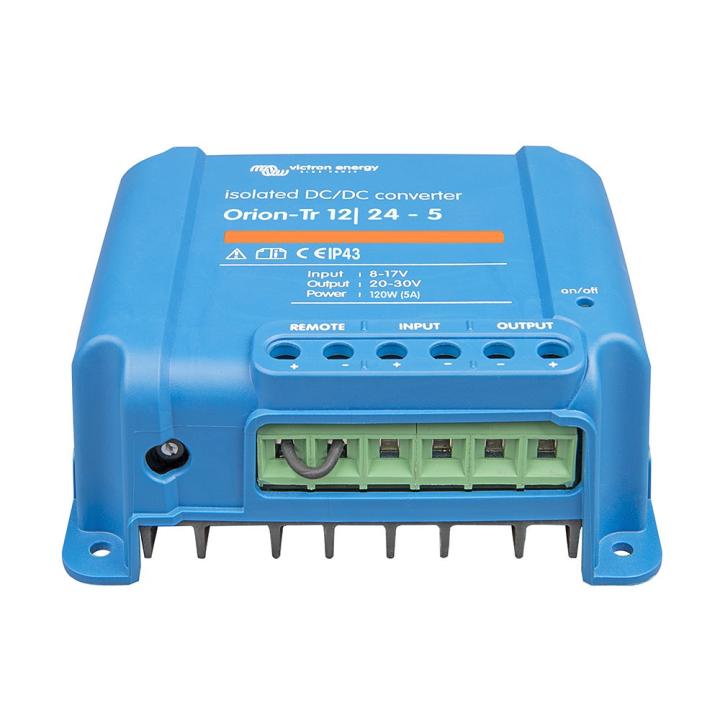

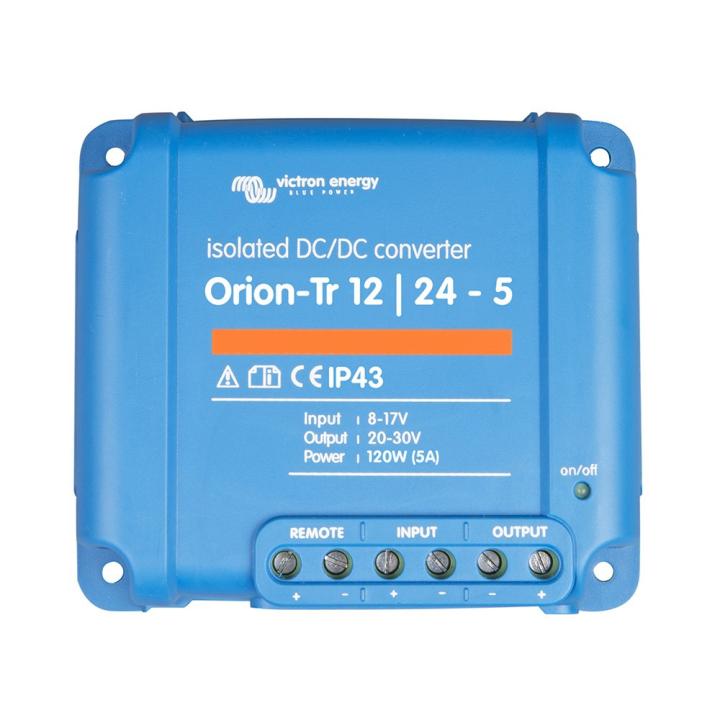

Victron Orion-Tr DC-DC converters - with insulation - 220/240 and 280W
Remote on/off connector
The remote on-off connector eliminates the need for a high-current switch on the input wiring. The remote on-off connector can be operated from a low-power switch or, for example, from a motor start/stop switch (see manual).
All models are short-circuit protected and can be installed in parallel to increase output current. An unlimited number of units can be connected in parallel.
IP43 protection: if installed with screw terminals, face down.
Screw terminals: No special tools are required for installation.
Input fuse: On 12 and 24 V models only.
Remote on-off
The "Remote On-Off" output dispenses with the need for a high-current switch in the input wiring. This function can be operated by a low-power switch or, for example, by the motor's "on/off" switch (see user manual).
Adjustable output voltage: can be used as a battery charger
For example, to charge a 12 V starter or service battery in a 24 V system.
All models are short-circuit protected and can be paralleled to increase output current.
An unlimited number of units can be paralleled.
IP43 protection
IP43 protection if the unit is installed with the terminal block at the bottom.
Terminal block
No special tools required for installation
Internal fuse
On 12 V and 24 V models only
Technical data
ORI482441110
