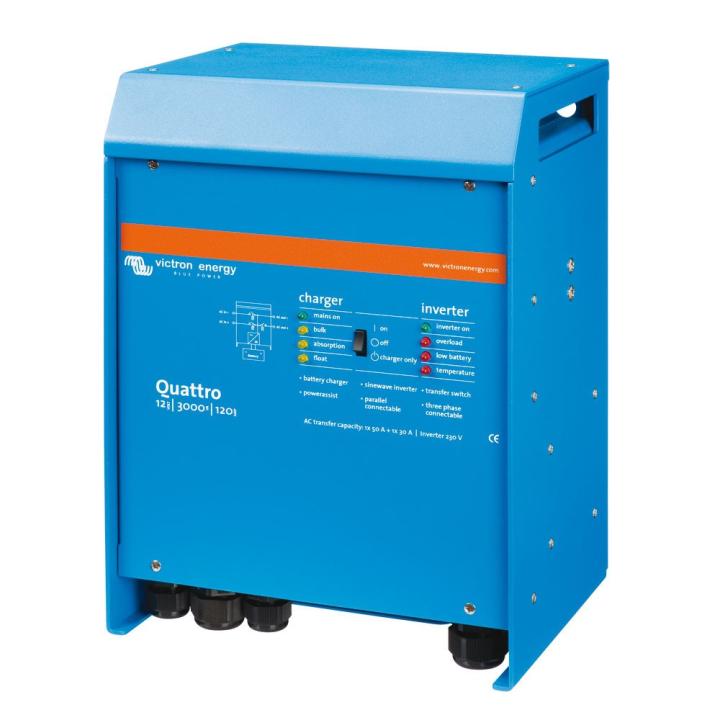

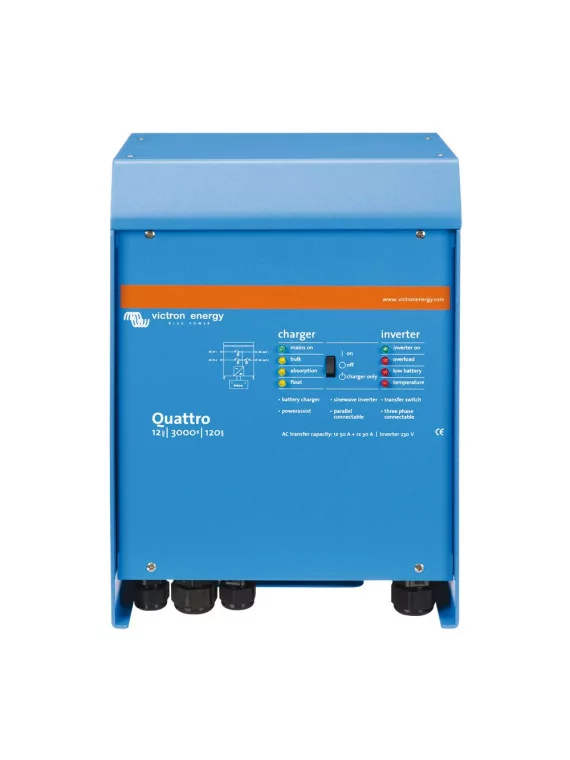

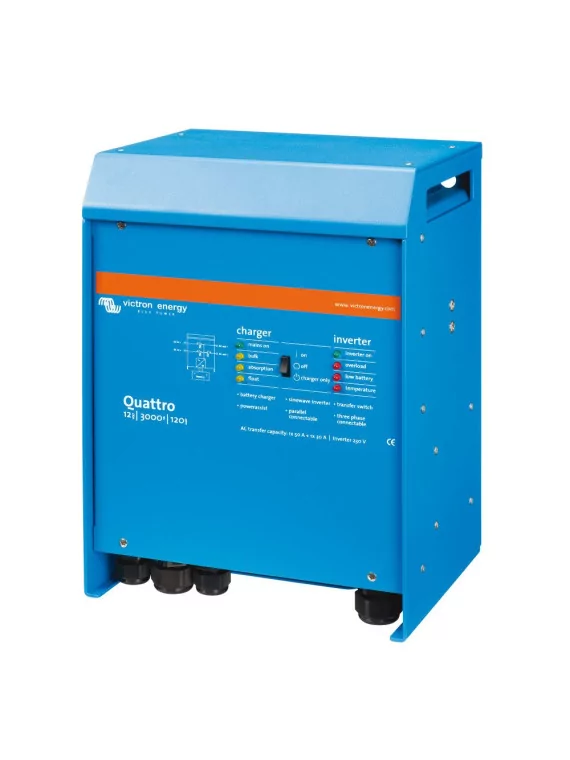

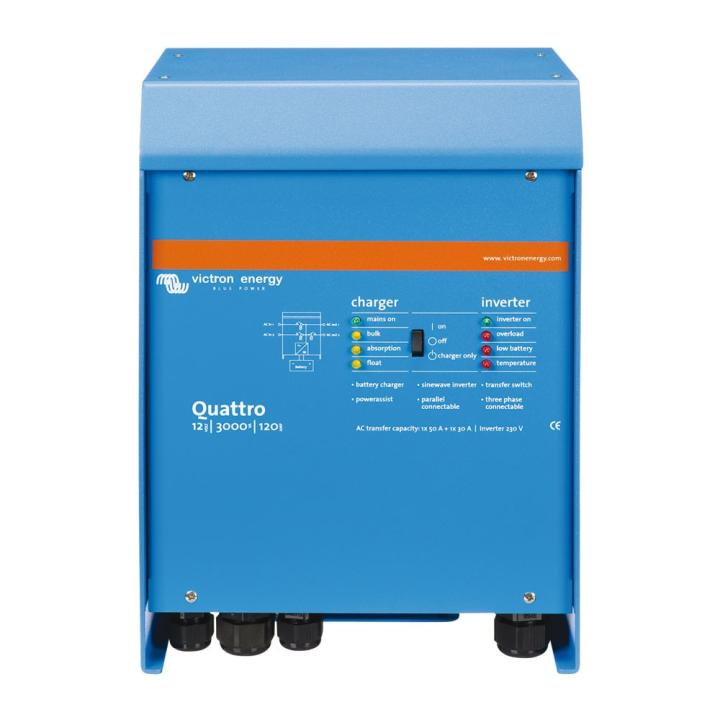

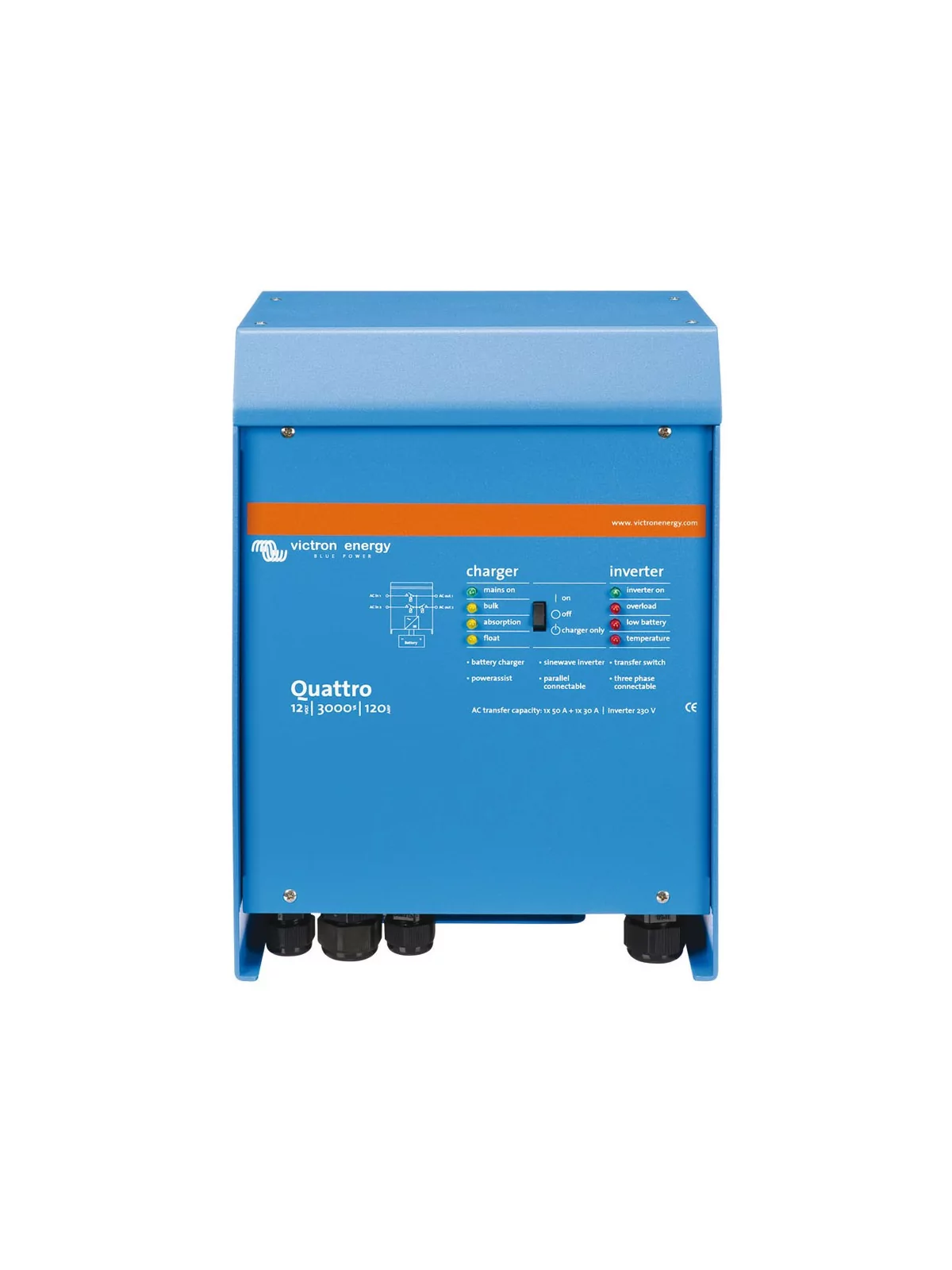

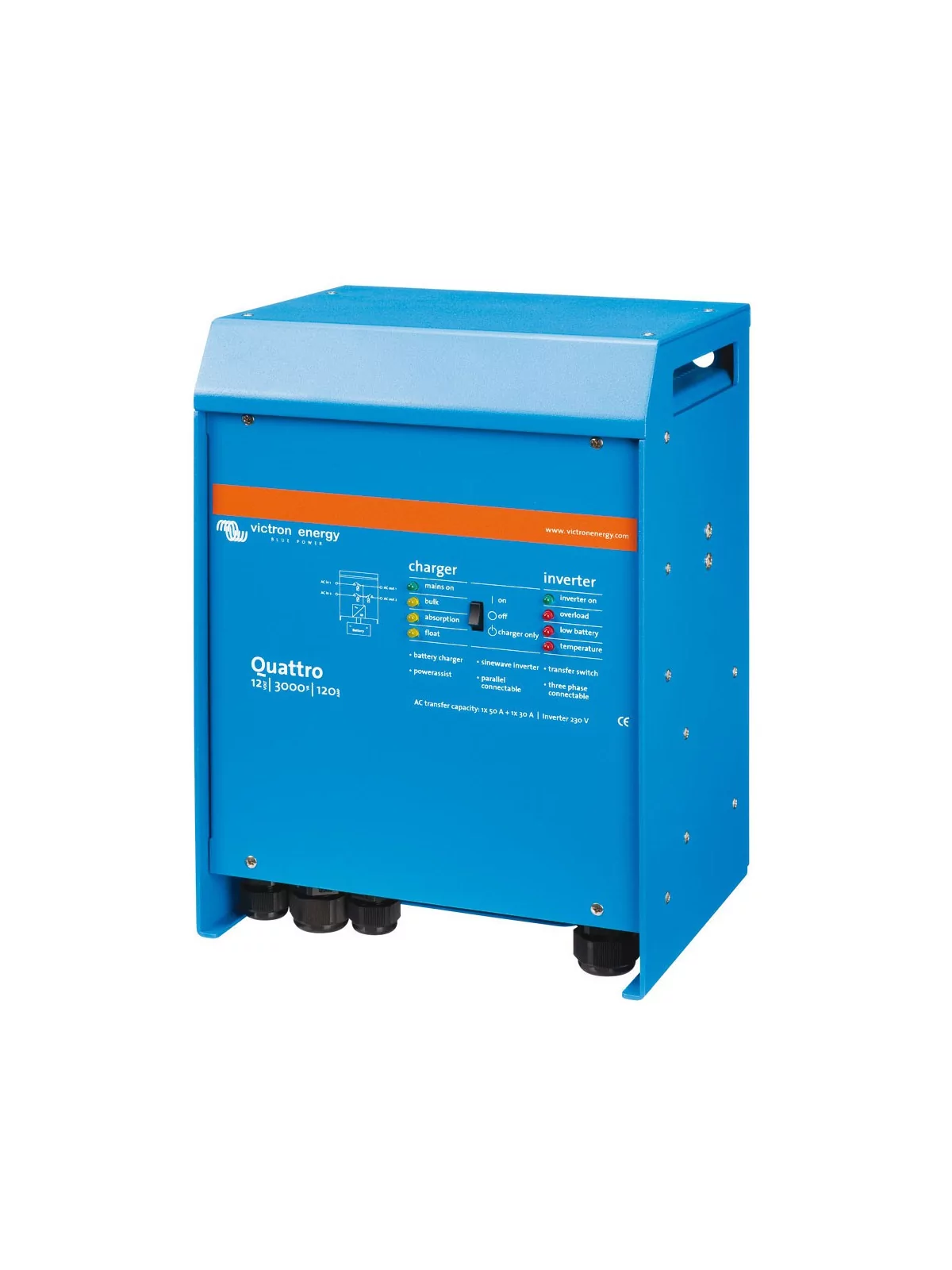

Inverter Victron Quattro 12V / 24V / 48V - from 3 to 15 kVa

"Up to 10 Quattro inverters can be operated in parallel

The Victron Quattro inverter can be connected to two independent AC sources. It will automatically connect to the active source .The Quattro iscompatible with Lithium-ion batteries and up to six inverters can operate in parallel.

Description

Two AC outputs

The main output provides a continuous power supply. In the event of grid disconnection or failure, the Quattro inverter takes over very quickly (20 milliseconds) to supply the connected loads, so that the operation of connected electronic devices is not disrupted. The second output is active when AC power is available at one of the inverter inputs. It can be used to connect devices that would not discharge the battery (a water heater, for example).

Virtually unlimited power thanks to parallel operation

Up to 10 Quattro units can be connected in parallel. For example, ten 48/10000/140 units will provide 90 kW / 100 kVA of output power and 1400 Amps of load capacity.

Three-phase

Three units can be configured for three-phase output. Up to 10 series of three units can be connected in parallel to provide 270 kW / 300 kVA of power and over 4,000 A of load capacity.

Powercontrol

The powerful battery charger integrated into the unit requires high currents when connected. The control panel limits this power and uses only the surplus for charging, thus avoiding overloads.

Powerassist

This function supplements the capacity of the AC source in the event of short-term power demand. When power demand falls, the surplus is used to recharge the batteries.

Simple installation

The Quattro inverter is ready to use straight out of the box, and requires no computer for programming.

Warranty

Victron inverters come with a 2-year warranty.

Solar energy: AC power available even in the event of grid failure

The Quattro can be used both off-grid and connected to a PV grid or other alternative energy systems.

Technical data

Victron Energy application

Monitor and manage your Victron Energy system. Log in with your VRM account to see all your products. Tap on a product to see its schematic, system status and energy flow.

The Victron app is available free of charge from the Apple app store.

Options

The entire Victron Quattro range is available as an option (in the menu above).

12V from 3000 to 5000VA, 24V from 3000 to 8000VA, 48V from 5000 to 15000VA

(Datasheet download)
