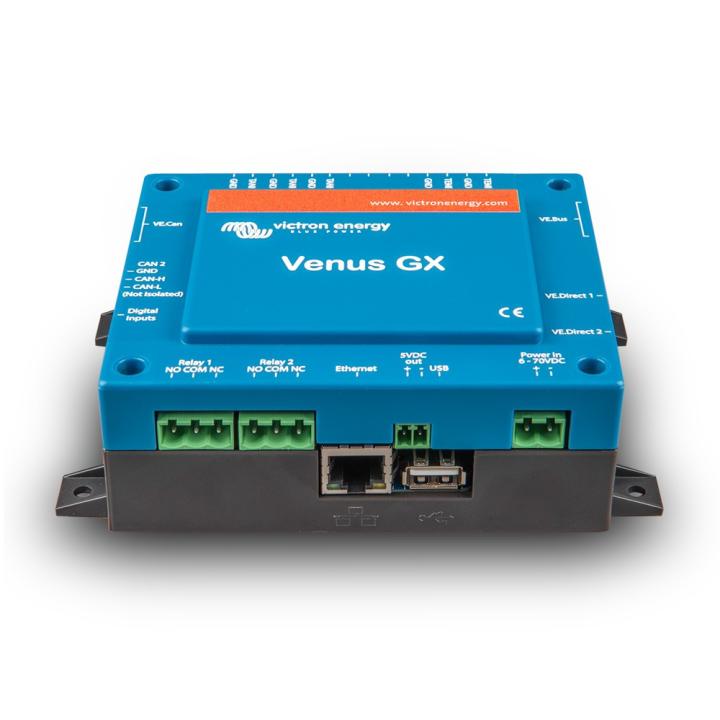

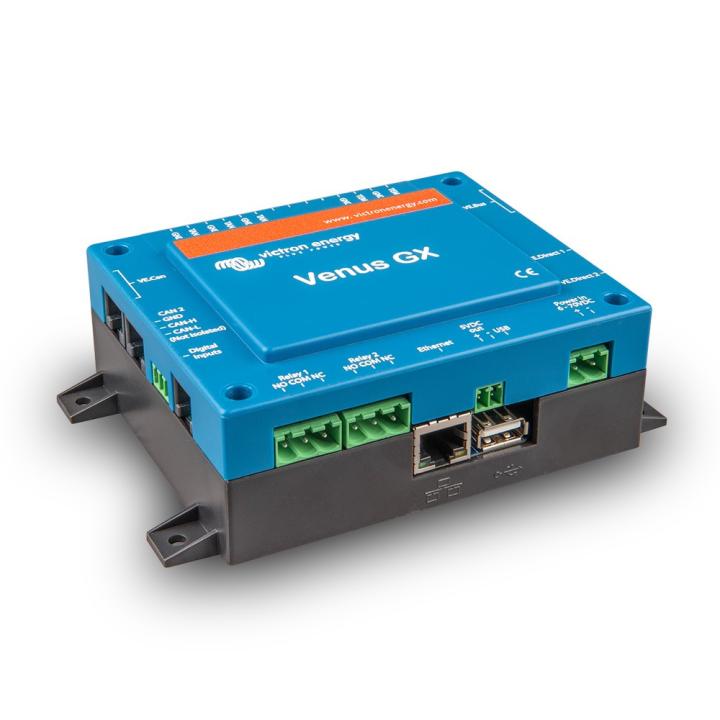

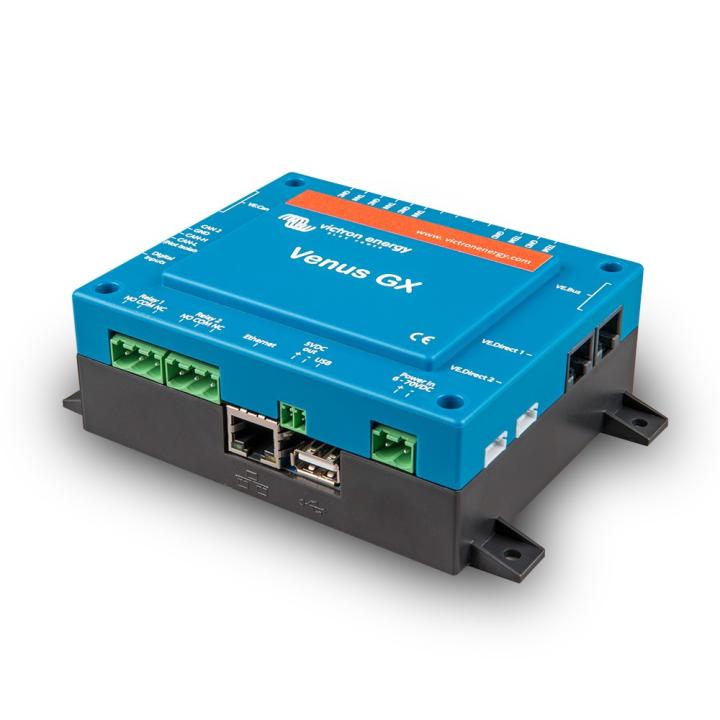

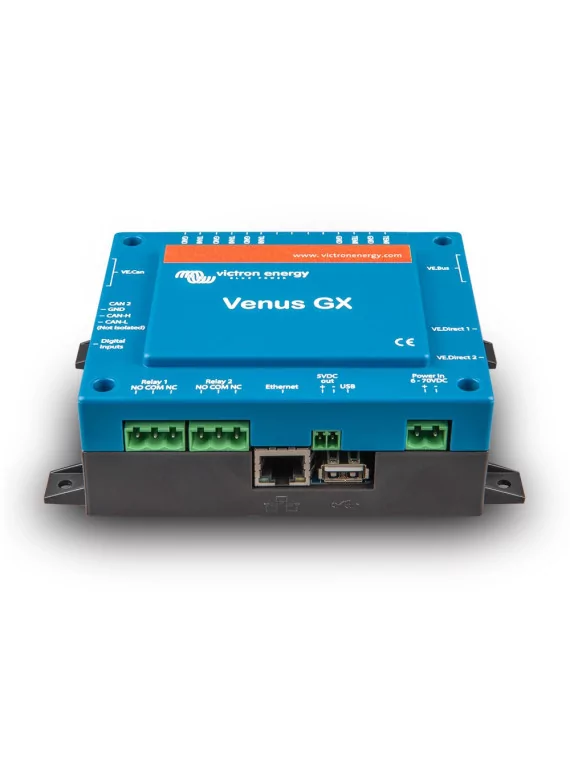

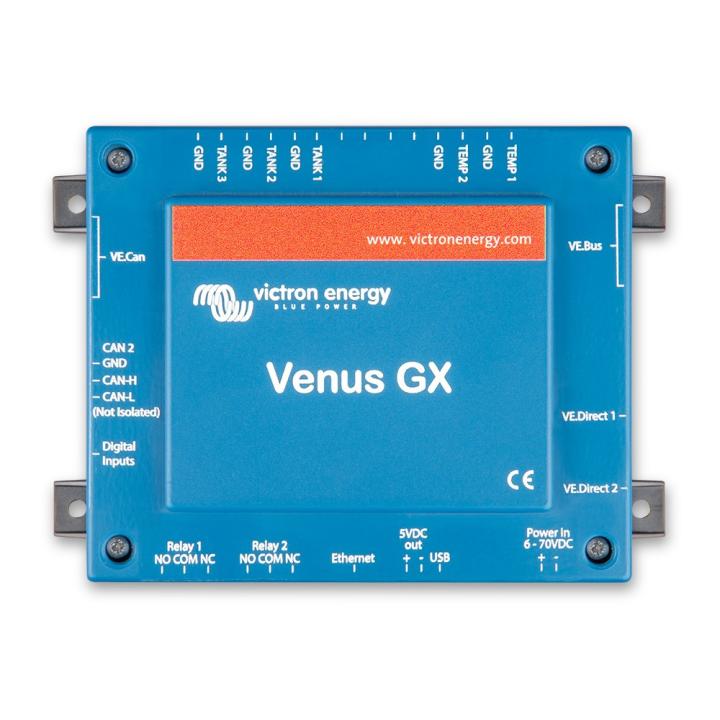

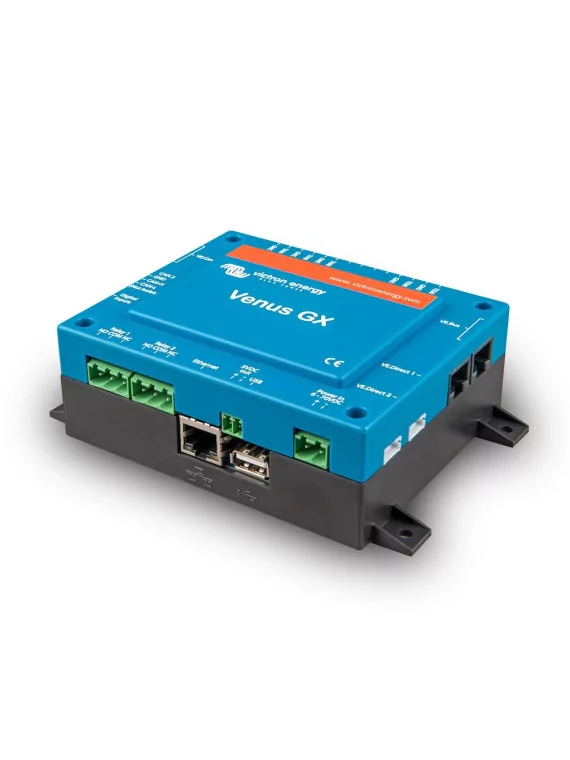

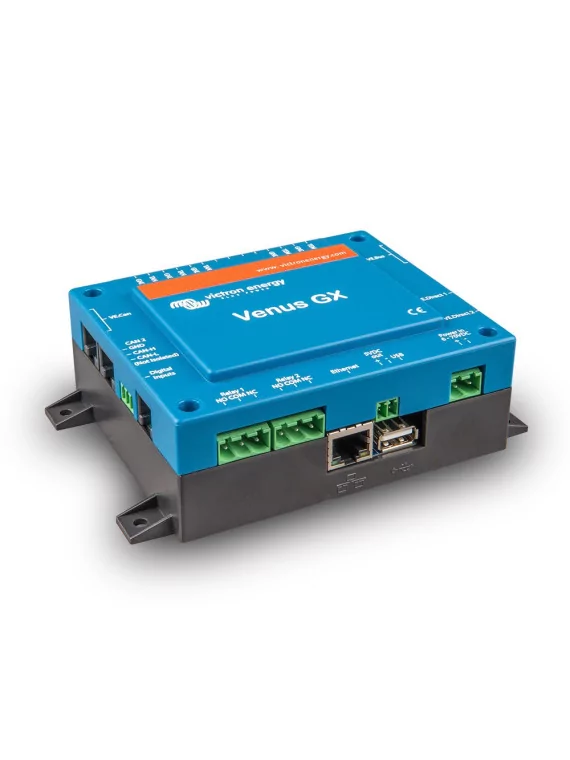

The Venus GX provides intuitive control and monitoring of all Victron electrical systems. The list of connectable Victron products is endless: inverters, Multi, Quattro, MPPT solar chargers, BMV battery controllers, Lynx Ion + Shunt, and much more.
The Venus GX provides intuitive control and monitoring of all Victron electrical systems. The list of connectable Victron products is endless: inverters, Multi, Quattro, MPPT solar chargers, BMV battery controllers, Lynx Ion + Shunt, and much more.
If more than two VE-Direct products are to be connected, a USB cable can be used.
All readings are transmitted to our free remote monitoring website: the VRM online portal. To see for yourself, try the demo at https://vrm.victronenergy.com.
Thanks to the remote console, you can access the device to configure and monitor it. Whether via VRM, the integrated Wi-Fi Access Point, or the local LAN/WiFi network.
Venus GX |
Supply voltage range |
- 70 VDC |
Current draw | 210 mA @ 12V 110 mA @ 24V 60 mA @ 48V |
Communication ports |
VE.Direct |
separate VE.Direct ports - isolated |
VE.Can |
parallel RJ45 connectors - isolated |
CAN | 2nd CAN interface - non-isolated |
VE.Bus |
RJ45 connectors in parallel - isolated |
USB |
USB Host ports - non-isolated |
Ethernet | Connector RJ45 10/100/1000 MB RJ45 - isolated except shield |
Wi-Fi Access Point | To connect to the remote Console |
Fi Client | To connect the Venux GX to an existing Wi-Fi network |
Dry contact | NO/COM/NC - 6 A 250 VAC / 30 VDC |
Connections for fuel level |
x configurable for Europe (0 - 180 Ohm) or the USA |
U (240 - 30 Ohm) |
Temperature level connections |
x ASS000001000 required |
Third-party interfaces |
Modbus-TCP | Use the Modbus-TCP protocol to monitor and control all products connected to the Venus GX |
JSON | Use the VRM JSON API to extract data from the VRM portal |
Other |
External dimensions (h x w x d) | 45 x 143 x 96 |
Operating temperature range |
20 to +50°C |
Standards |
Safety | EN 60950 |
EN 61000-6-3, |
EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
Automotive | In progress |
