    €778.99
    Tax included
    Newmeil-X-400
    0768563821424

    Wind turbine 400 W 12V or 24V

    • Supplied with its charge regulator
    • Silent and vibration-free
    • Lightweight and compact
    • Perfect for small appliances



    Our products are designed to achieve high quality standards while being affordable for everyone.

    Eolienne Newmeil: Eolienne Newmeil x-400 24V

    Sorry, there are no more items in stock.

    Wind turbine Newmeil x-400

    €778.99

    Newmeil X-400 : Your mobile mini power station

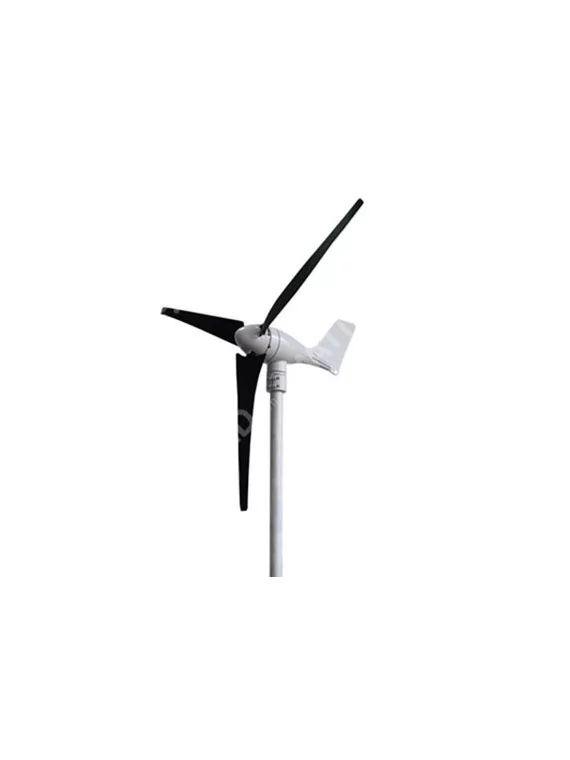

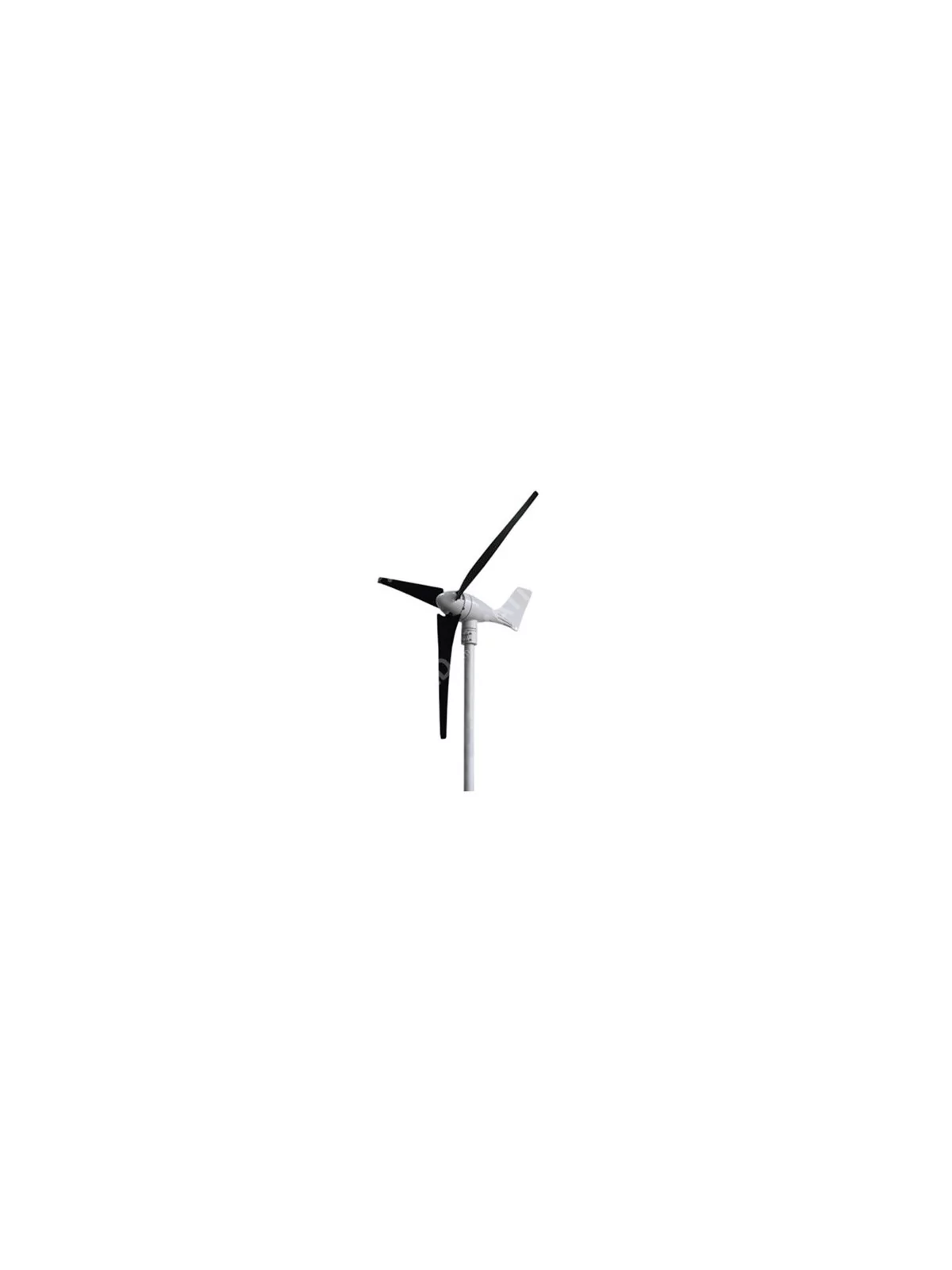

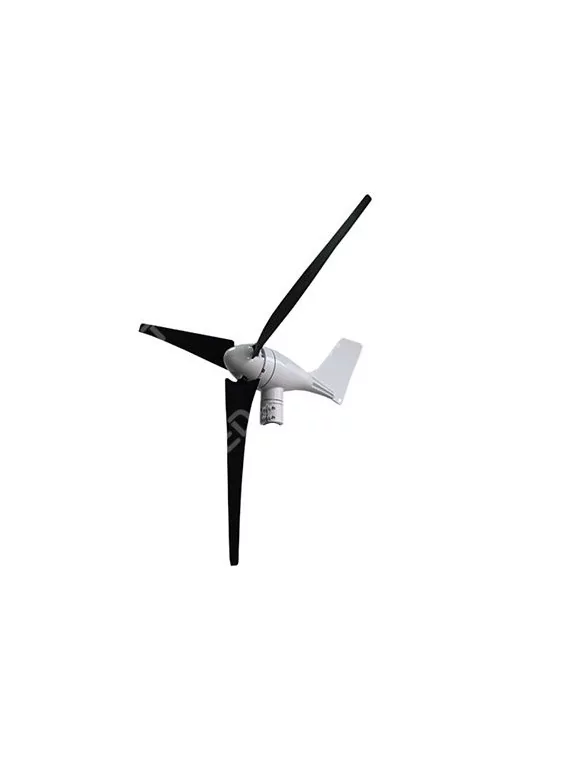

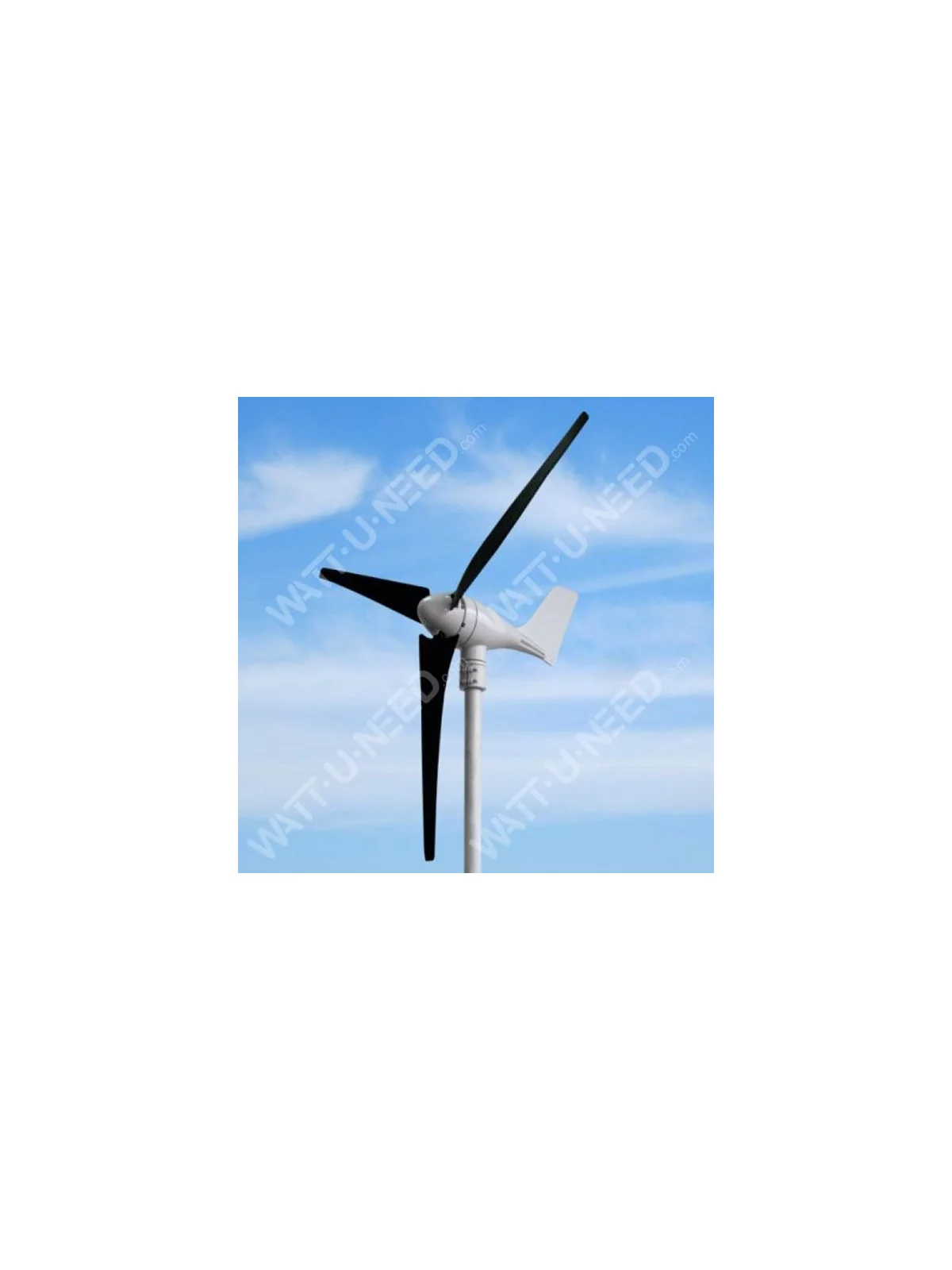

    Wind turbine Newmeil X-400



    Our products are designed to achieve high quality standards while being affordable for everyone.

    We have given special attention to the compactness and lightness of this model while retaining the same technologies we have developed for the most powerful wind turbines.

    This wind turbine was created to provide energy on the move. If you are planning a boat trip or a weekend in nature, the V-400 is the perfect companion.

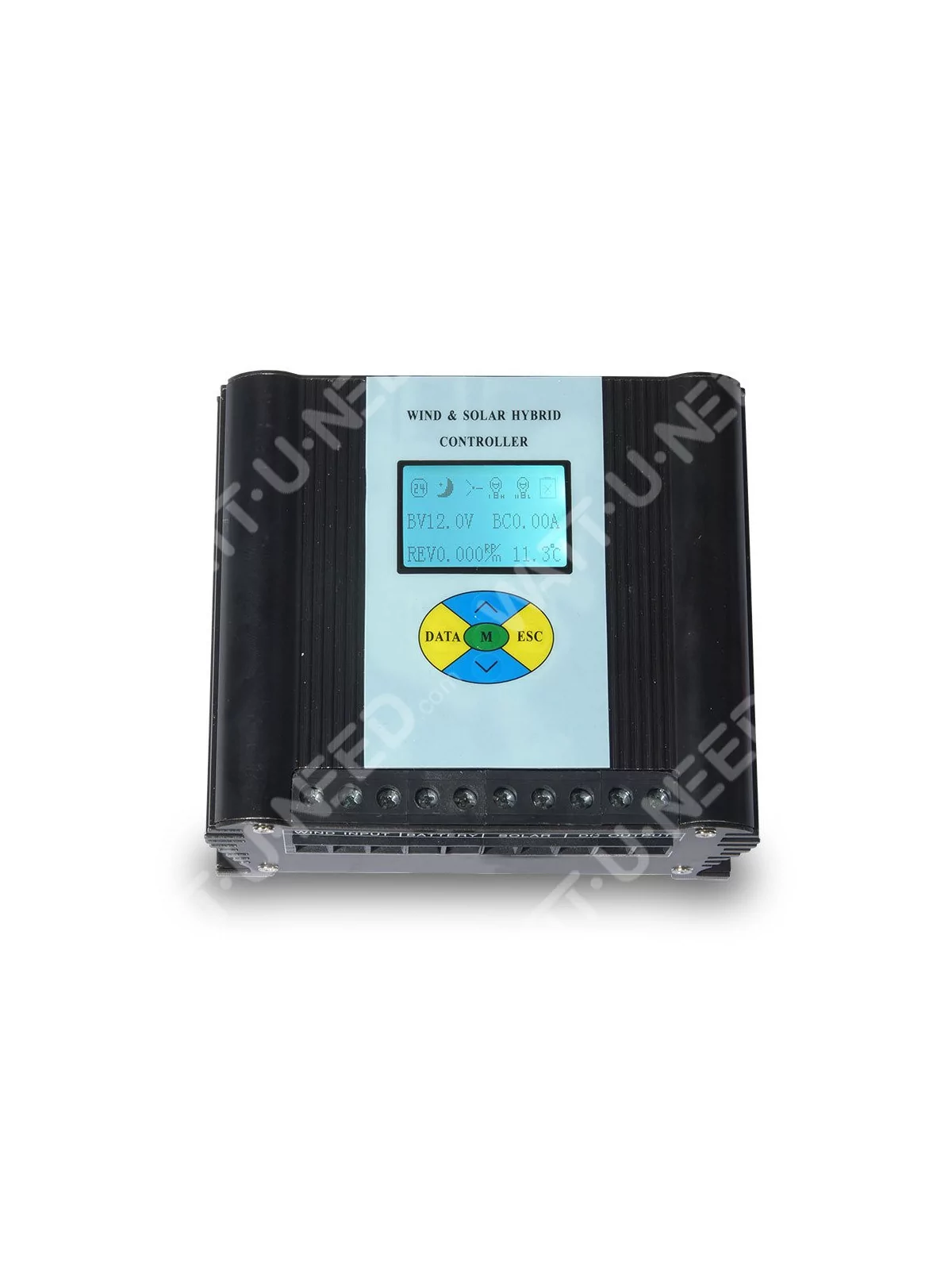

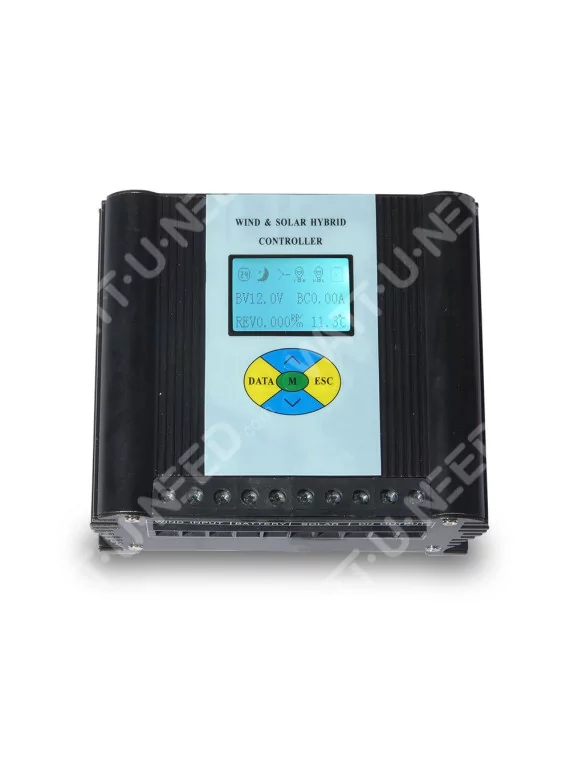

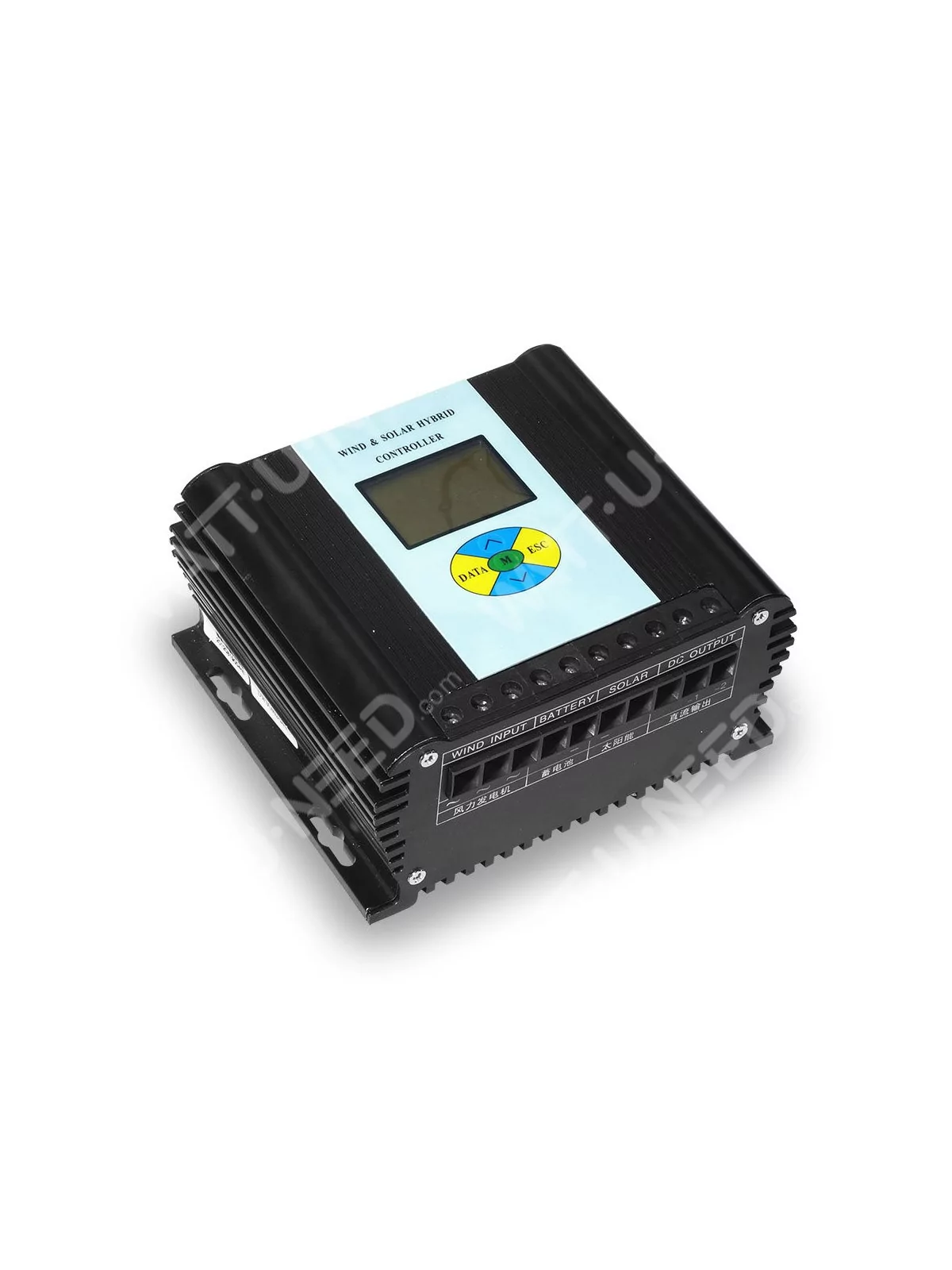

    The Newmeil X-400 turbine is supplied with its charge regulator.




    Wind turbine Newmeil X-400



    Characteristics



    ※ Low noise and vibration
    ※ Low wind speed at start up
    ※ High efficiency at low wind speed
    ※ Nominal wattage 400W
    ※ Light weight

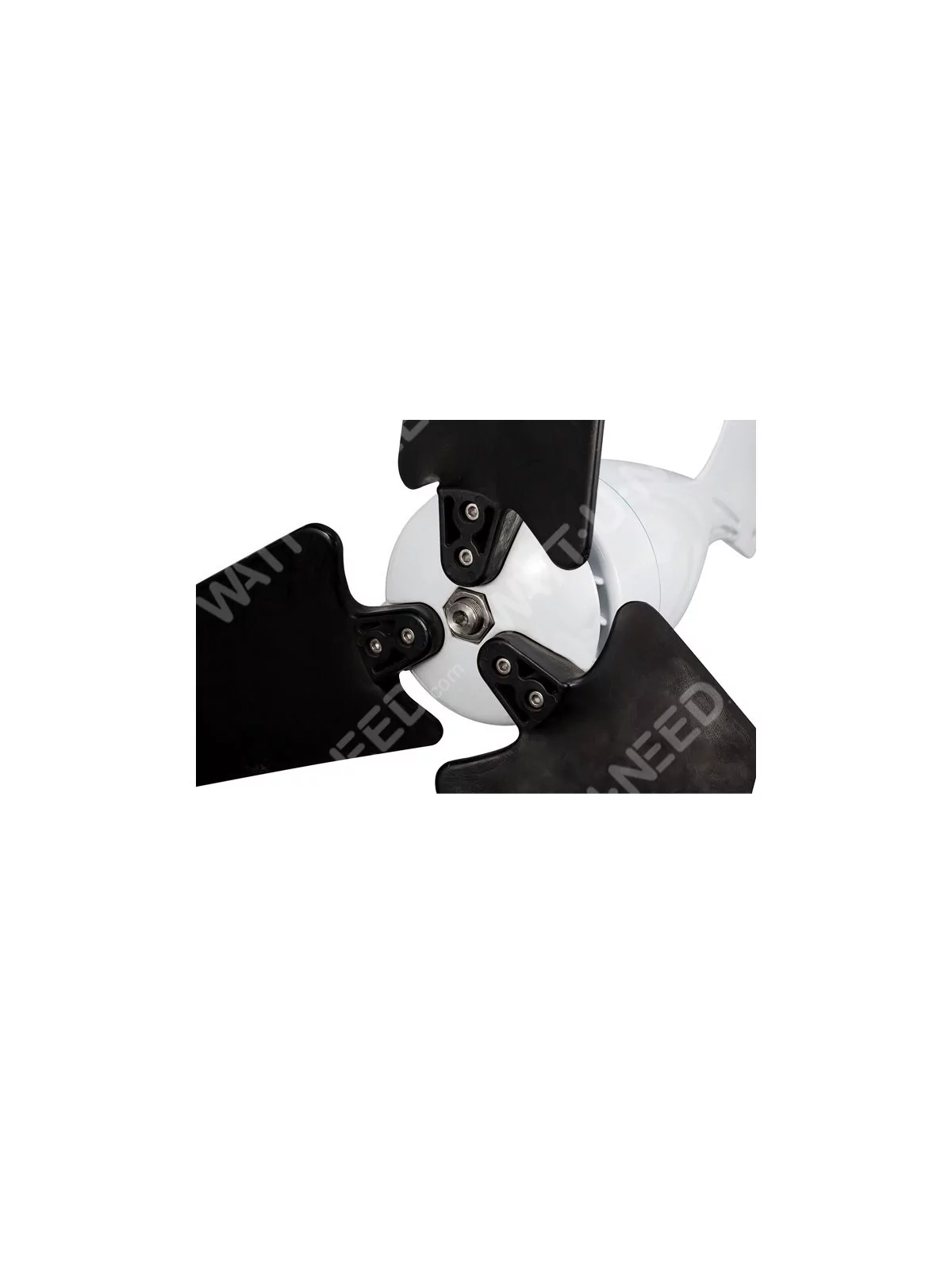

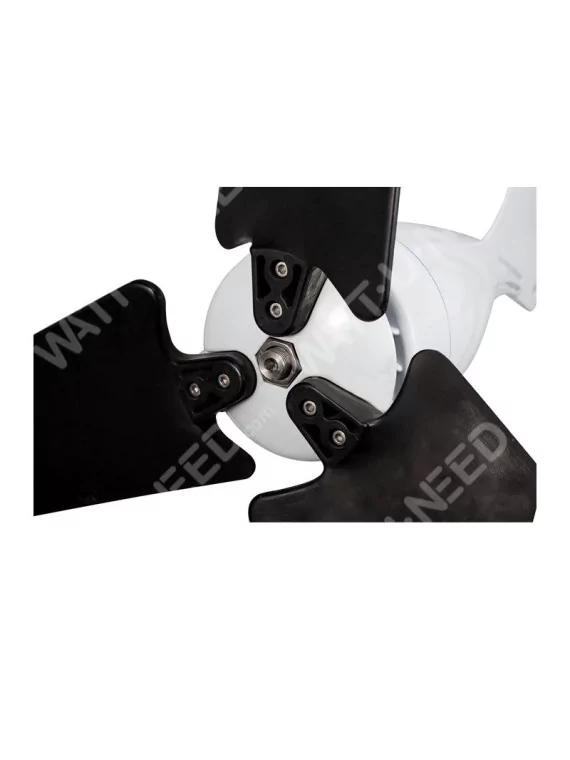

    ※ Carbon fiber composite blades

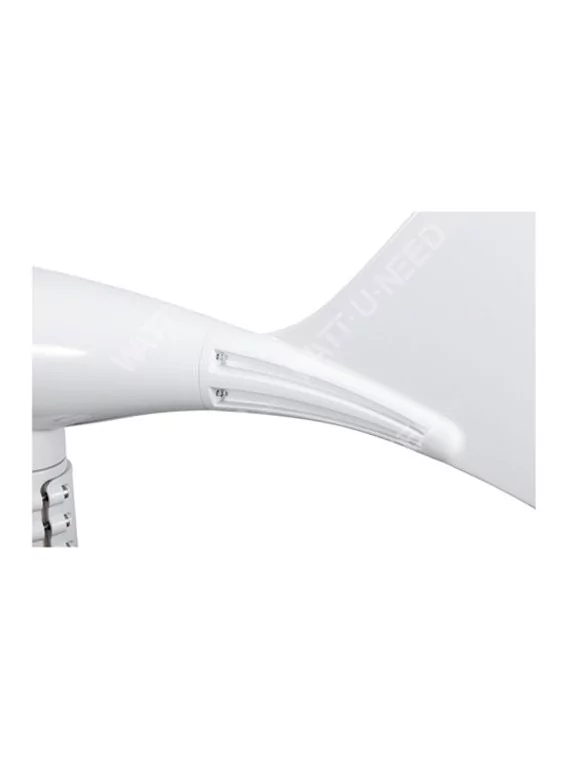

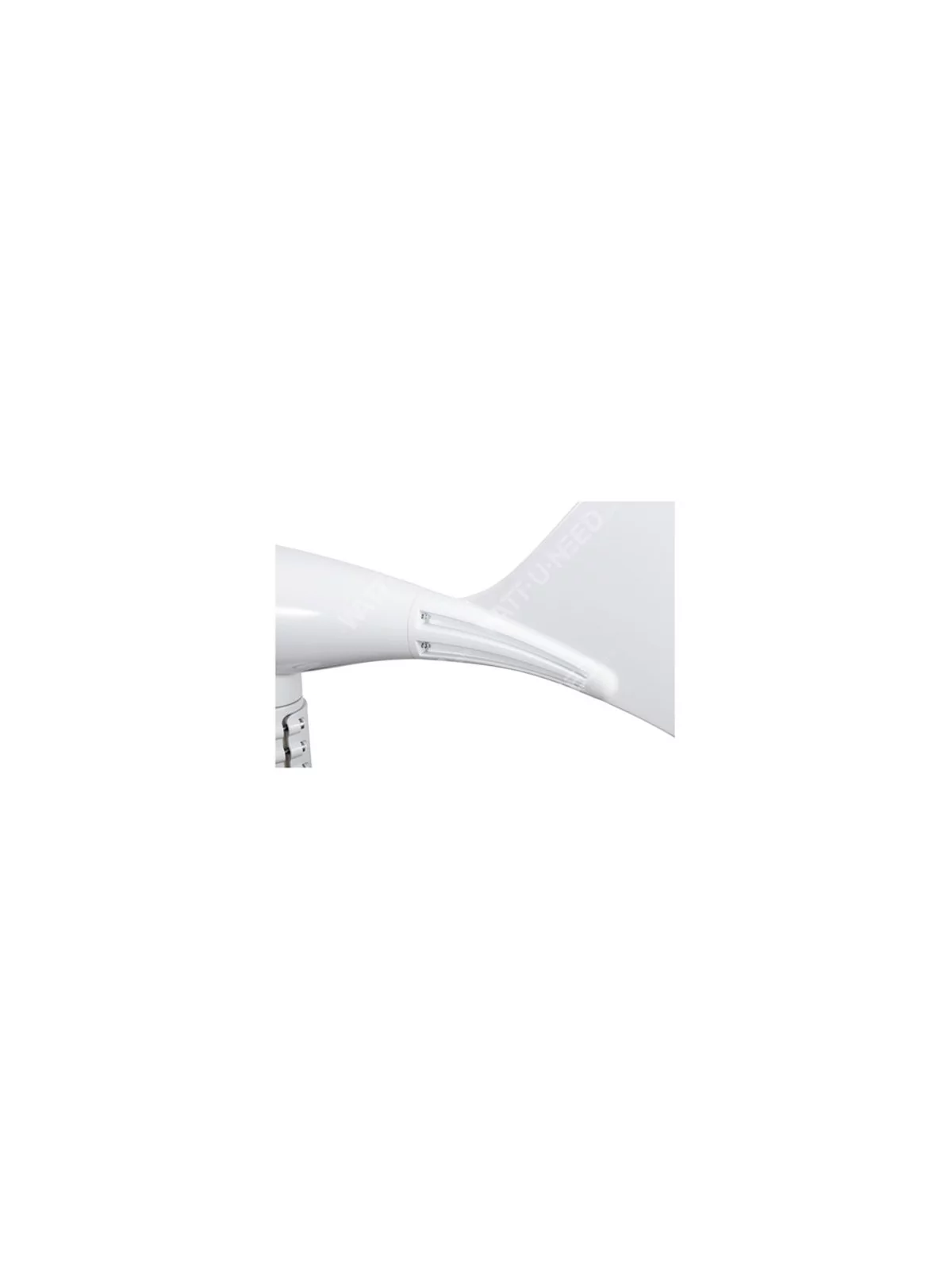

    ※ Aerodynamic design of the bodywork
    ※ Anti-rust, corrosion-resistant and long-life
    ※ Easy to install and maintenance free
    ※ 3 years warranty


    Output Power curve


     Annual Energy Production


    Wind turbine Newmeil X-400

    Characteristics



    WIND TURBINE X-400
    model400
    Type of wind turbineHorizontal axis, upstream of the wind
    Rotor diameter1330 mm
    Net weight7.8 kg
    Diameter of the Tower48-50 mm
    Number of blades 3
    Blade materialsCarbon fibre reinforced plastic
    Mass of the blades 300g/PCs
    Body materialDie cast aluminium
    Body constructionFully in one
    Product finishThermo powder coating base clamp

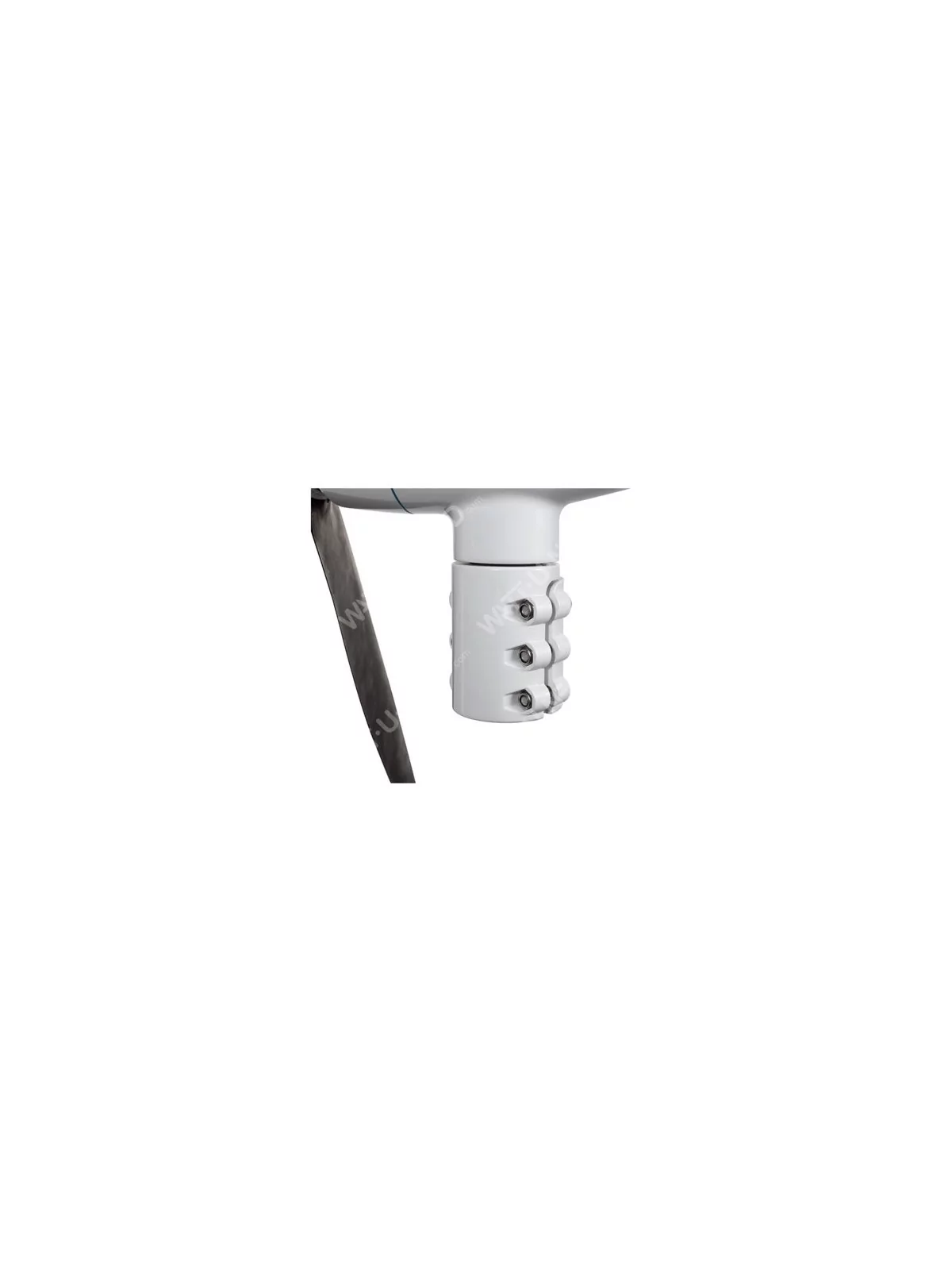

    Connecting the Towerbolt clamp
    Start wind speed2.5 m/s
    Reduced wind speed3M/s
    Survival wind speed 50m/s
    Nominal power400W (12.5 m/s)
    Nominal rotor speed800 RPM
    Maximum power500W (14m/s)
    Working temperature range-40 °c to 60 °c
    Product life span (years)15
    The sound pressure levelLAeq 33dB @ 5M/s @ 5M/s @ 5M behind the rotor (air density of 1.225 kg/m³)
    generator Three-phase power generator of synchronous type neodymium-iron-bore magnets
    Braking systemOff-grid 12V or 24V
    Lace controlAerodynamic and aerodynamic braking system at speed higher than the speed of the blade
    Steering control360 degrees free
    Steering control

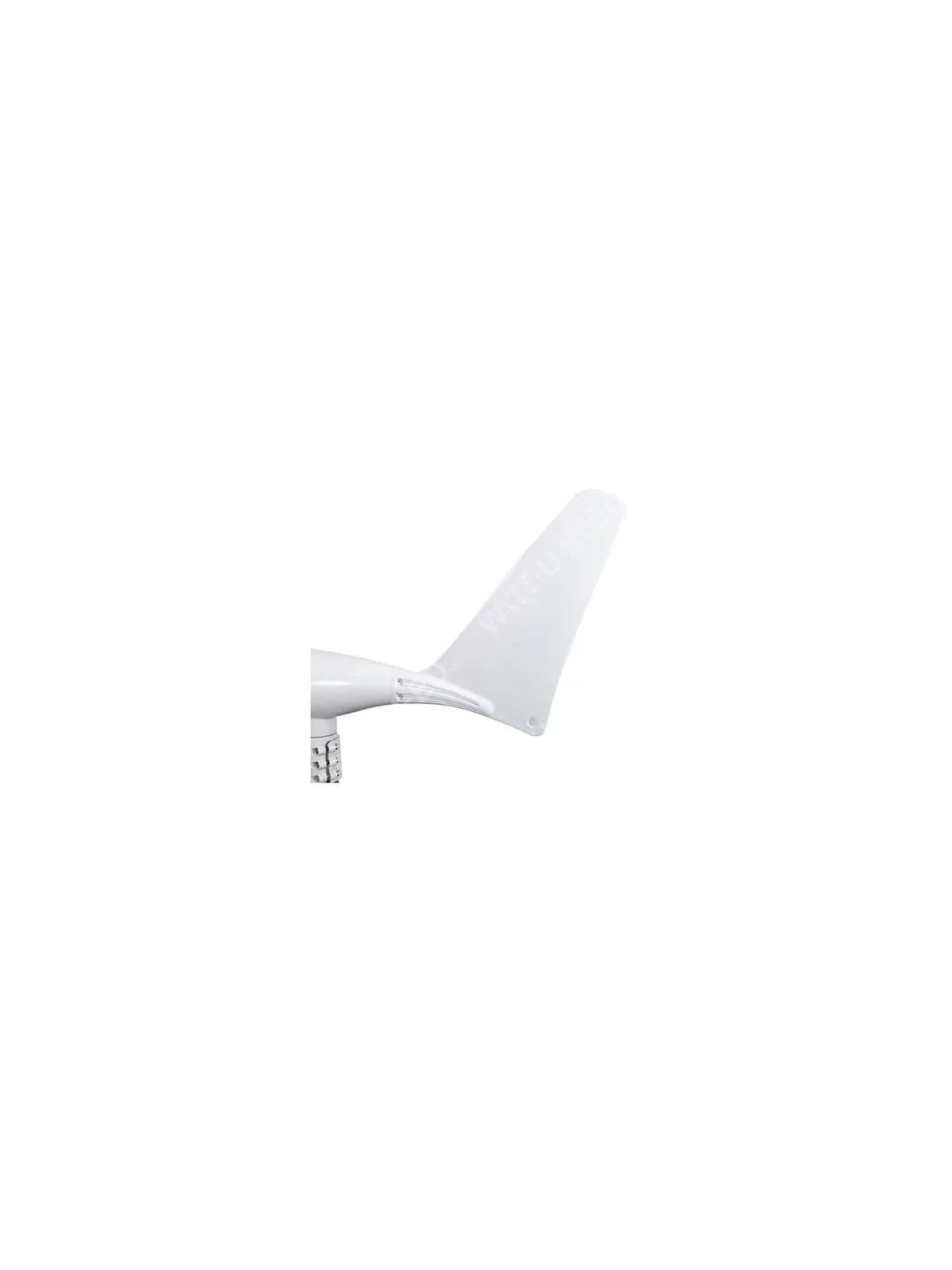

    Rear tracing
    Control systemBraking mode
    Recommended systemcontrol out network: lead acid battery with deep discharge safety
    Note: at the speed of the starting wind, it produces electricity, but it requires a higher wind speed to charge the battery or transfer it over the network.
    Newmeil-X-400

    Data sheet

    Wind turbine
    With
    Voltage
    12V
    Power
    400 VA
