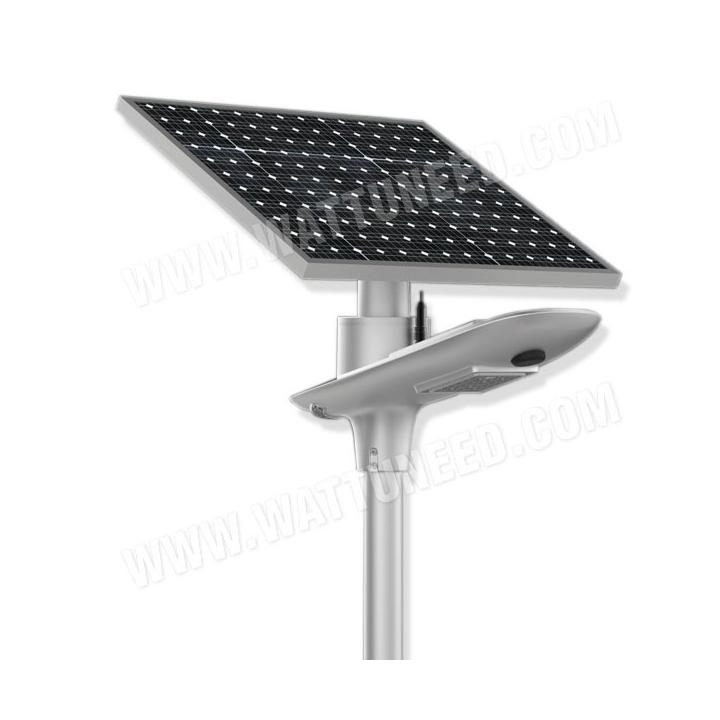

Solar lamp post - LED autonomous WE 15W 5V - 65Wc Panel
Complete system that combines a solar panel, a body LED, a charge controller and a battery to ensure an independent off-grid lighting of your choice (street parking...), it is easy to install and maintain.
Solar lamp post - LED autonomous WE15W 5V
Complete system that combines one Solar Panela body LEDone charge controller and a battery in order to ensure a autonomy outside lighting of your choice (street parking...) network, it is easy to install and maintain.
The solar panel, placed above the battery, allows to protect the most fragile components of heat and extend the life of the equipment. The Panel can also be adjusted manually on the axis vertical and horizontal, guaranteeing maximum efficiency of solar energy.
Features
Rotating solar panel
Solar Panel adjustable in height and horizontal direction
Installation States
Integrate the compass in the body of the lighting
Microwave motion detector
Controlled by radar, called Doppler effect, more intelligent, more thrifty in energy
Management control mode
6 modes work choice
The charge and discharge management
Protect the battery by the software and hardware, supporting the battery to 0v
Battery update program
Single channel integrated control technology.
More stable and longer life expectancy.
Design of unique integration
Easy to transport, install and maintain
Data sheet
Type | WE 50 | WE 65 | WE 80 |
Lamp power | 10W | 15W | 20W |
Solar Panel | 50W/5V | 65W/5V | 80W/18V |
Lithium battery | 138WH / 3.7V | 166WH / 3.7V | 275WH / 11.1V |
Luminous flux | 1700 - 1800lm | 2500 - 2700lm | 3300 - 3600lm |
LED qty | 36pcs | ||
Charge time (full sun) | 5 hours | ||
LED chip | Bridgelux | ||
Color temperature | 3000-6500K | ||
DR. | ≥70Ra | ||
Light control voltage | 1V | ||
Light distribution | Polarized light | ||
Lighting time | 2-3 days | ||
Distance from the sensor | 5 10 m | ||
Time of the sensor | 20 30 s | ||
Operating temperature | -20℃ ~ 60℃ | ||
Life | ≥50000heures | ||
Material | Aluminum alloy | ||
Diameter of the top of the pole | 60mm | ||
Mounting height | 5 6 m | ||
Mounting distance | 10 30 m |
Gegevensblad
- Type zonnepakket
- kit éclairage autonome
- Type behoefte
- Self-Use Lighting Kits
- Aantal panelen
- 1 panel
- Type LED
- Kit éclairage autonome
- Vermogen voor verlichting
- 10W
- Type verlichting
- LED Bulb
- Stroom
- 50W/5V
- Type paneel
- Rigids
- Cellen
- Monocrystalline
