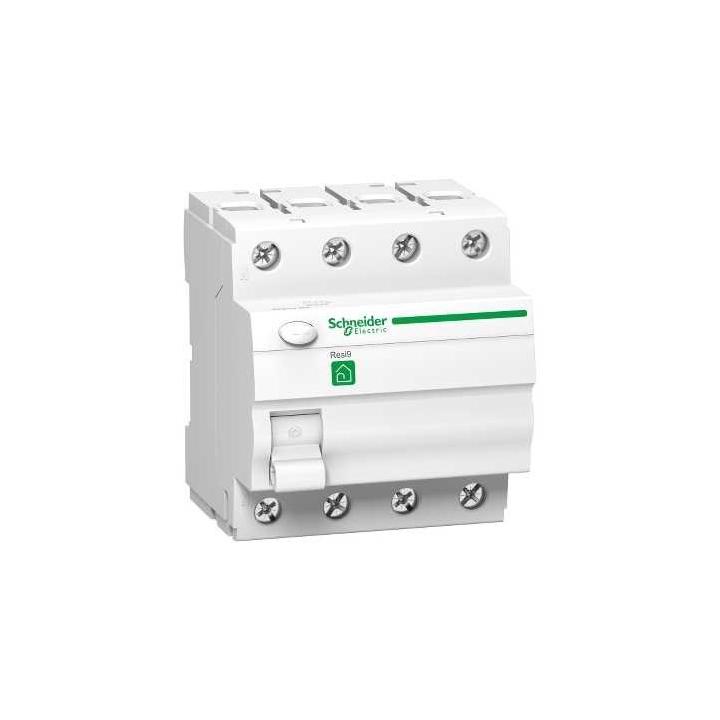

Differential switch type A 4P 63A 30ma
Differential switches are devices that are placed in front of them and protect against leakage currents to earth unacceptable. They protect people against electric shock.
In case of a leakage current with a residual pulsating direct current, an imbalance appears in the primary coil of the toroid, thereby generating a residual magnetic field in the core. This residual magnetic field in turn generates a voltage and a current in the secondary coil which solicits over. The relay in turn solicits the release device and open the contacts under spring pressure.
Main features | |
Range | Resi9 |
Product name | Resi9 RCCB |
Product function | Residual current circuit breaker (RCCB) |
NShort name of the device | Resi9 RCCB |
Description of the poles | 4P |
Position of the neutral pole | Left |
Rated operational current | 63 A |
Network type | CA |
Differential sensitivity | 30 mA |
Differential Timing | Instant |
Differential Class | Classe A |
Rated breaking and closing capacity | Im 500 A |
Conditional short-circuit current | 6 kA |
Additionnal features | |
Network frequency | 50/60 Hz |
[Ue] rated operating voltage | 400 V CA 50/60 Hz |
Type of control | By crank |
Local indication | Indication ON/OFF |
Installation mode | Snap-in |
Mounting bracket | DIN rail |
Compatibility of the busbar comb distribution block | Biconnect |
Step of 9 mm | 8 |
Height | 100 mm |
Width | 75 mm |
Depth | 82 mm |
Weight | 0.355 kg |
Colour | White |
Mechanical life | 5000 cycles |
Electrical life | AC-1 : |
Connection type | Terminals tunnel type flexible wire (s) 1 ... 25 mm² max without cable end Terminals tunnel type flexible wire (s) 1 ... 25 mm² max with cable end Tunnel type terminals rigid wire (s) 1 ... 35 mm² max |
Tightening torque | 3.5 N.m |
Environment | |
Standards | EN 61008-2-1 IEC 61008-2-1 |
Quality labels | CEBEC |
Degree of protection | IP20 |
Operating Temperature | -25…40 °C |
Ambient temperature for storage | -30…70 °C |
Sustainability of the offer | |
Environmental product status | Green Premium product |
RoHS (code date: YearWeek) | Compliant - since 1329 - Declaration of Conformity Schneider Electric |
REACh | Reference not containing SVHC above threshol |
Environmental Product Profile | Available |
Product end-of-life instructions | No specific recycling operation |
