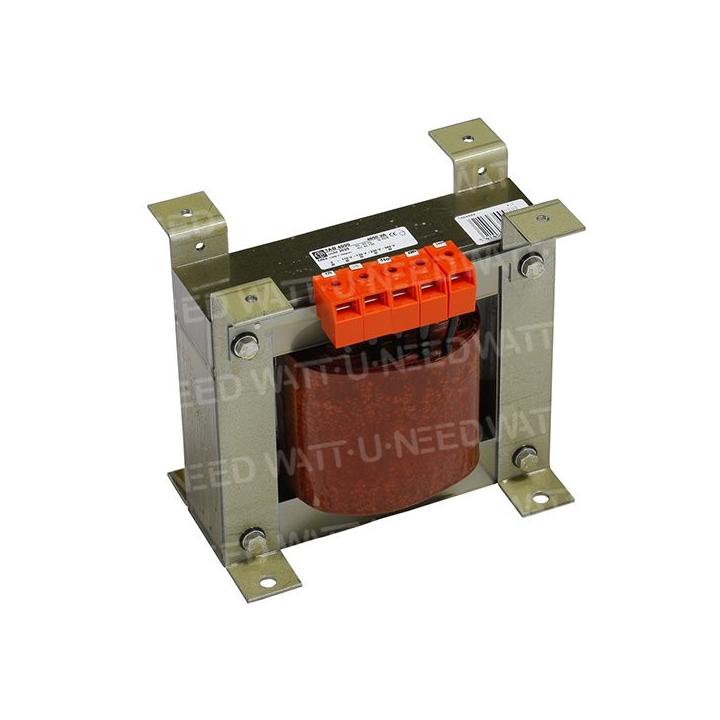

![Single-phase autotransformer 1F 4000VA Single-phase autotransformer 1F 4000VA](https://www.wattuneed.com/38569-large_default/single-phase-autotransformer-1f-4000va.jpg)
![Single-phase autotransformer 1F 4000VA Single-phase autotransformer 1F 4000VA](https://www.wattuneed.com/38569-slider_photo/single-phase-autotransformer-1f-4000va.jpg)
• impregnated under vacuum and pressure
• partially common windings
• reversible
• equipped with a ground terminal
• prepared for protection class I (bare executions for recessed installation)
• protection class I (closed executions with sheet metal housing)
• degree of protection IP00
• IP20 protection level (closed executions with sheet metal housing)
• dielectric stiffness relative to mass 2000 VAC
• temperature class B
• maximum ambient temperature at 40 °C
IP20, IP23, IP65 protective enclosures: chapter 9
• Connection terminals with screw fastening
• supports with fixing holes
EN 60076-11 (EN 60726)
EN 61558-2-13 Ptype ≤ 1kVA
• degree of protection IP23 and IP65 (waterproof)
• other tensions and other powers
• connections with power outlets and with network cables
• with fuses
• tropicalization treatment
• A: 240mm
• B: 145 mm
• C: 224 mm
• D: 200 mm
• E: 122 mm
• AIP20: 273 mm
• BIP20: 210 mm
