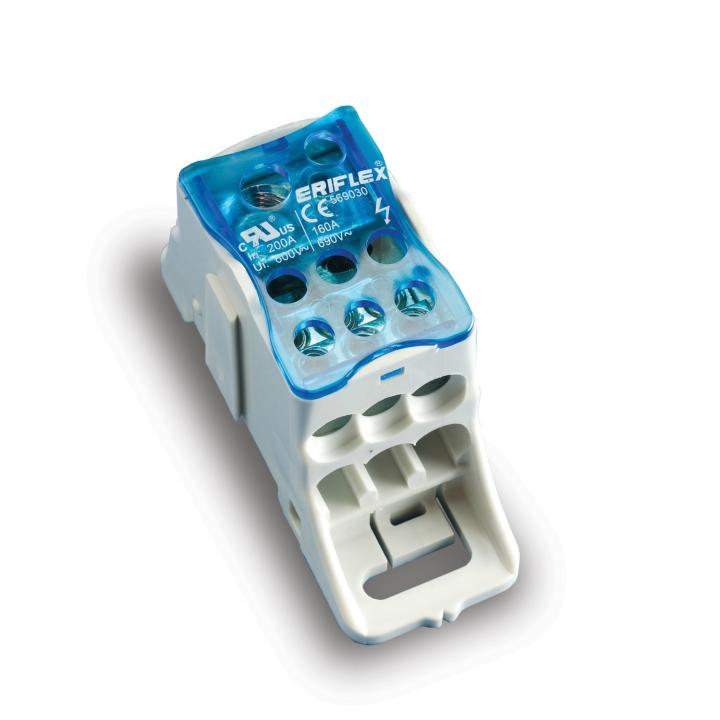

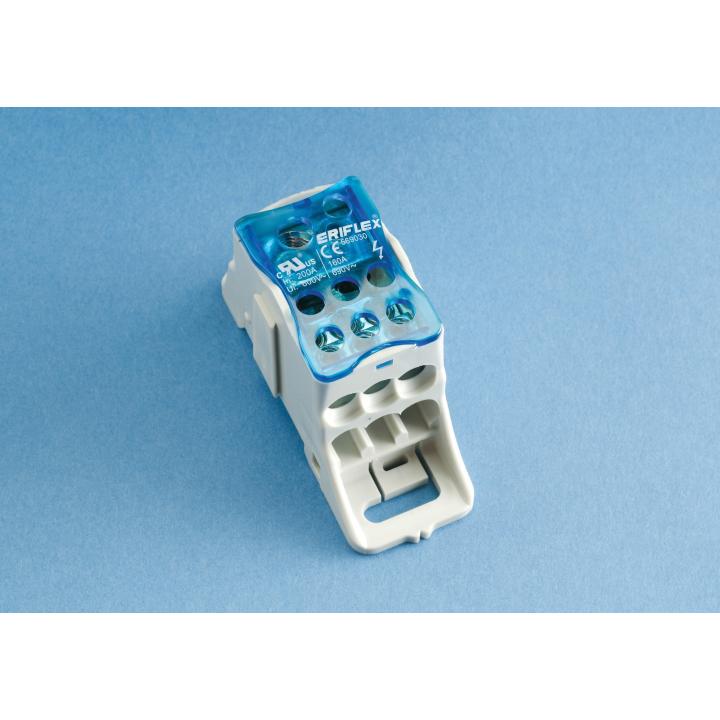

Single Pole Distribution Block Eriflex 125A
€ 33,65
Inclusief belasting
045788-125A
0712971135321
Unipolar distributor Eriflex 125A
" Unipolar distributor 125A Eriflex "
Features :

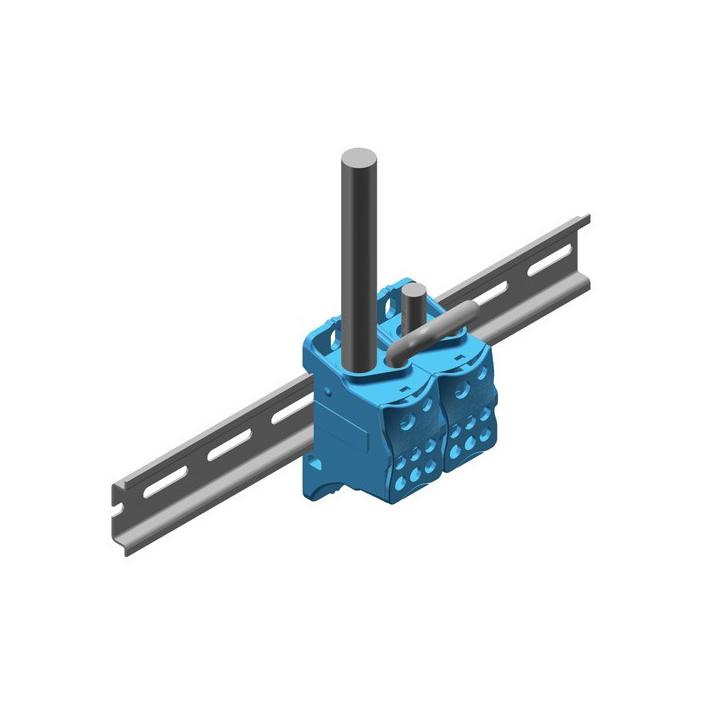

- Increase the number of outputs with one input using a jumper wire
- Tinned copper block allows for copper or aluminum conductor connections
- Screw retaining cover is hinged and removable
- Design allows for visual inspection of conductor and confirmation of connection

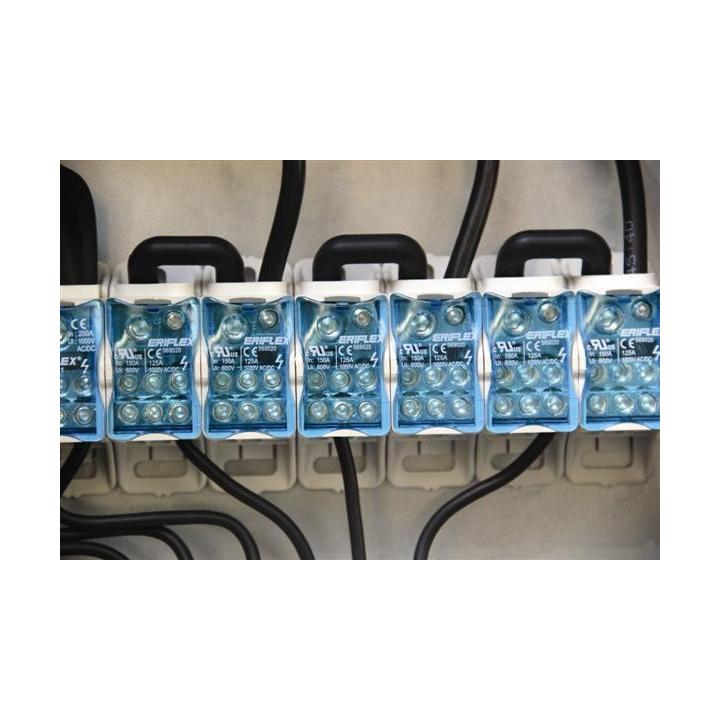

- Gangable for building multi-pole power blocks

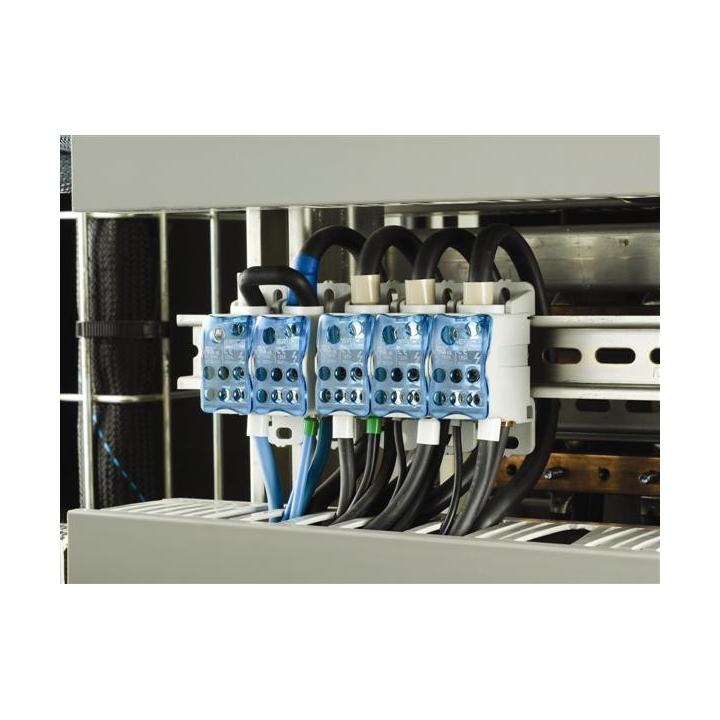

- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- RoHS compliant
Specifications :
Material: Copper; Thermoplastic
Finish: Tinned
Part Number UDj-125A
Article Number 569020
| Max Current Rating, IEC | 125A |
| Max Current Rating, UL/CSA | 150A |
| Short Term Withstand Current (Icw) 1s | 4.2kA |
| Peak Short Circuit Current (Ipk) | 30kA |
| Short Circuit Current Rating (SCCR) | 100kA |
| Max Working Voltage, IEC (Ui) | 1000 VAC/DC |
| Max Working Voltage, UL (Vin) | 600V |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 10 - 35 mm² |
| Line Side Wire Size | #8 – 1/10 |
| Load Side Number of Connections | 7 |
| Load Side Compact Stranded Wire Size | (1) 6 - 16 mm² (6) 2,5 - 6 mm² |
| Load Side Stranded Wire Size - Ferrule | (1) 6 - 16 mm² (4) 2,5 - 16 mm² |
| Load Side Wire Size | (1) #14 - #2 Stranted ; #14 - #10 Solid (6) #10 - #4 |
| Enclosure Rating | IP 20 |

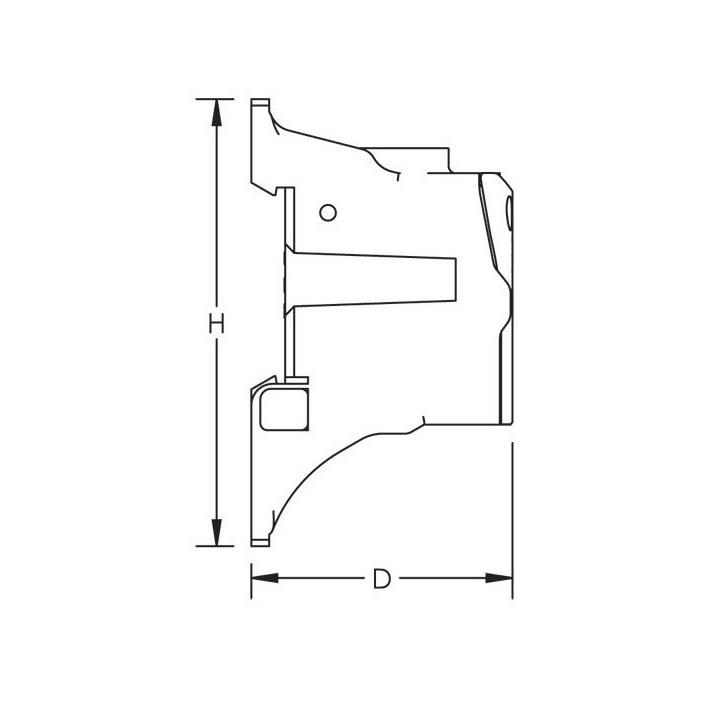

| Depth (D) | 46 mm |
| Height (H) | 77 mm |

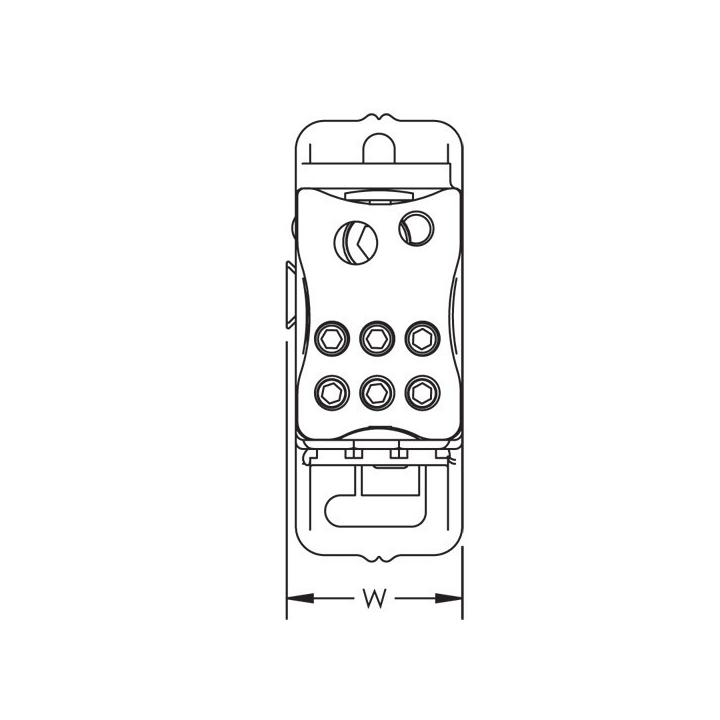

| Width (W) | 29 mm |
| Unit Weight | 0,15 kg |
| Certification Details | UL® 1059 |
| Flammability Rating | UL® 94V-0 |
| Complies With | IEC® 60947-7-1 |
045788-125A
