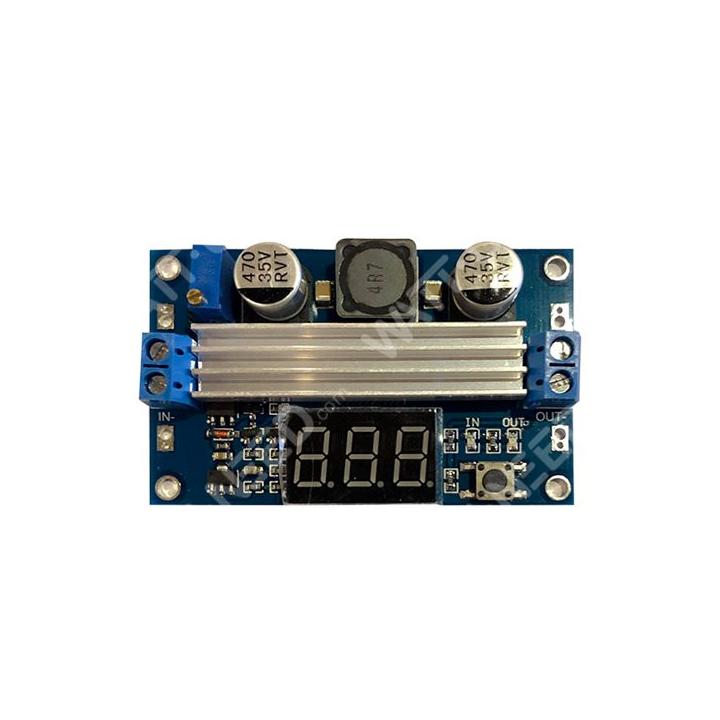

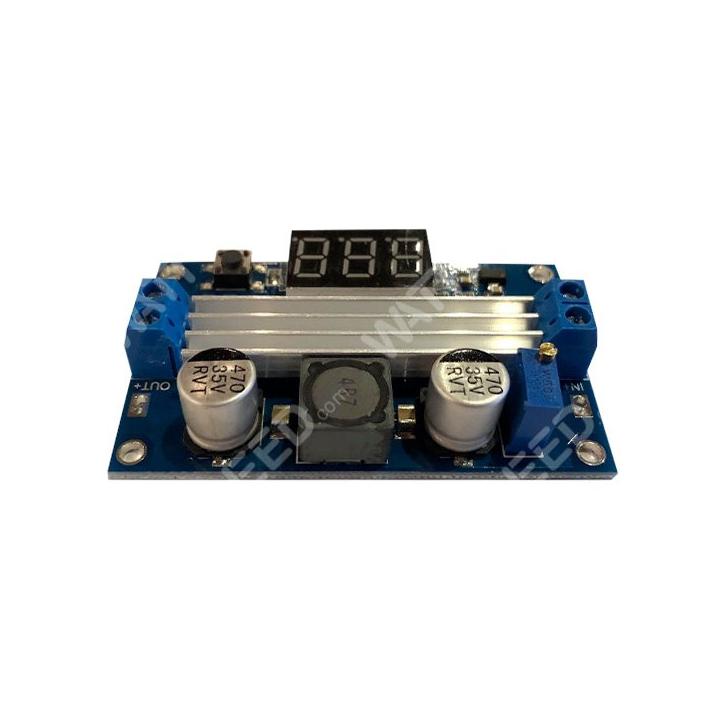

Converter step up 35V

" Converter step up 35V "

Features

• Size: 67.5mm x 41.5mm
• Input Voltage: DC 3~35V
• Input current: 9A (Max.)
• Output Voltage: 3.5V~35V
• Output Current: 6A (Max.)
• Output power: 65W, 100W
• Output Ripple: 40mV (TYP)
• Display Color: Red
• Voltage Meter Error:  ± 0.1V
• Measure Range: 4~40V
• Conversion efficiency: 96% (Max.)
• A key switch input and output voltage

Conversion efficiency measured(Voltmeter off):
