The new generation battery

The battery is charged during the day thanks to the production of photovoltaic panels.
It is discharged during the day when production is lower than consumption and at night in order to limit energy discharges into the distribution network to the strict minimum.

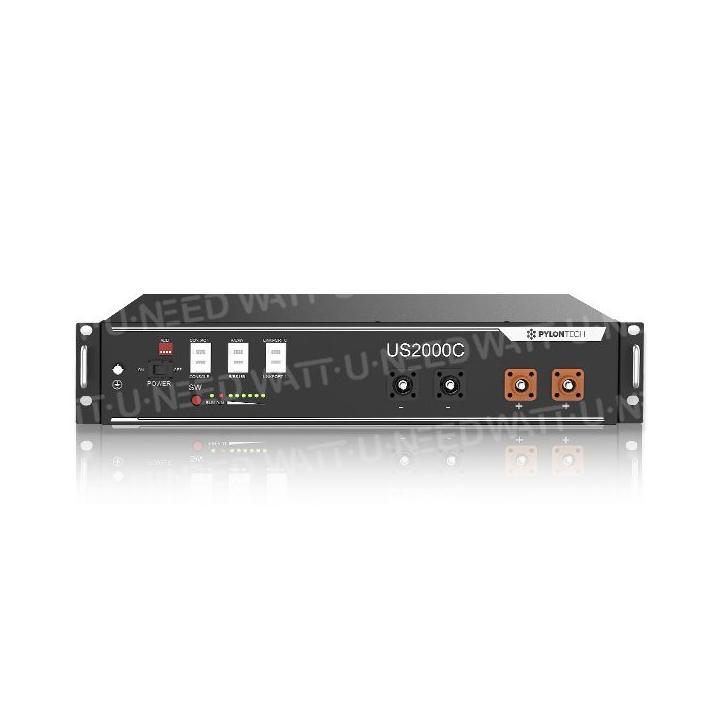

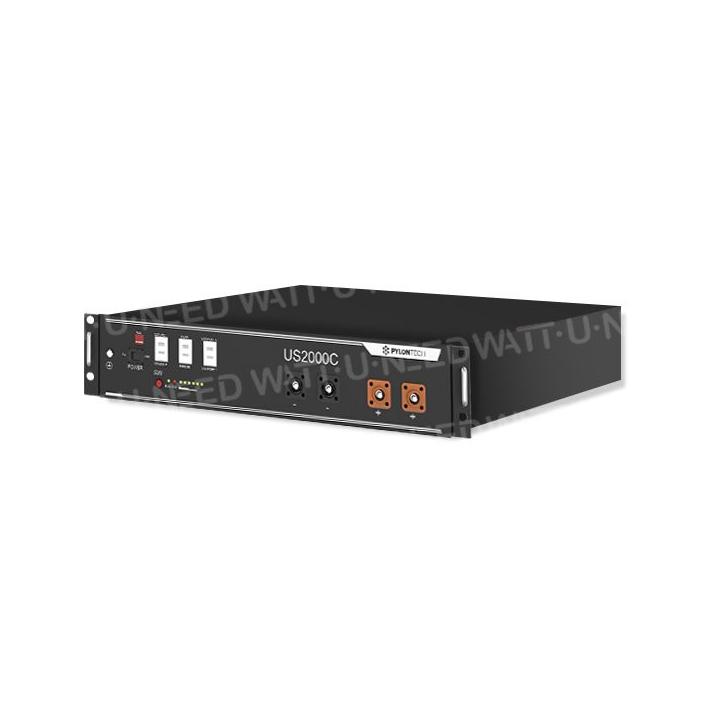

The US 2000 series is an ideal solution for residential storage applications, with a standard specification of 48V/50AH, up to 90% usable capacity and a guarantee of 6000 life cycles.

Latest HESS battery model from Pylontech+

This model of Lithium battery already powers more than 20,000 homes. Exceptional service life, quality energy. Design design makes it easy to install and expand your system. This battery reflects all the real requirements of end users and the highest technical capabilities of Pylontech.

You can find the 7-year warranty in the attached files. Save it to the Pylontech website allows you to extend the warranty to 10 years.

Why a battery storage system for the home?

Energy demand is high in the morning and evening.
But solar production is more sufficient in the middle of the day.
Battery storage system balances power and demand

Operating diagram

Exceptional service life

Advertised for more than 6000 cycles considering a depth of discharge of 90%
Pylontech batteries will accompany you for more than 10 years.

Delivers more than 5kW per module

The rated power per element is 2.5kW, but they can give 5kW to cope with high starting currents

Modular design

Pylontech batteries can be upgraded very easily
It is quite possible to start with one or two elements, and then increase according to your needs.

Compatible with most converters

Any charge regulator or inverter whose charging voltages can be set is compatible with Pylontech batteries

Compact and easy storage

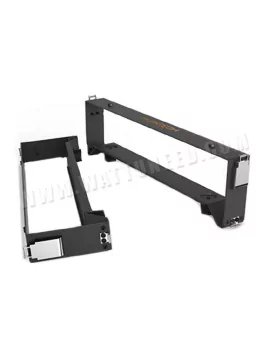

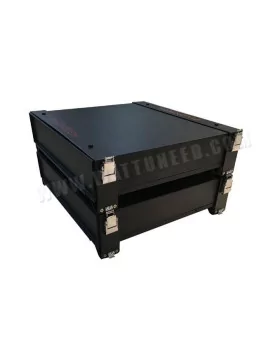

Pylontech batteries can be stacked very easily, and also be placed horizontally
It is also possible to place them in any 19' rack

Safety Cert.TÜV, CE, UN38.3, TLC

Loss of capacity depending on the number of discharges

Vertically: State of health
Horizontal: Number of cycles (flow capacity / nameplate)

Find the full ITP report by clicking here.

Lithium battery test performed by an independent body

Find the link of the site by clicking here.

Specifications

Vergelijkende tabel van prijs per nuttige kWh over de levensduur van de batterij in een oogopslag!

Er zijn verschillende opslagtechnologieën: gel- of AGM-batterijen, lithiumbatterijen, OPzS en OPsV. Het is niet eenvoudig om de juiste keuze te maken voor de meest geschikte technologie voor uw behoeften. Elke technologie heeft zijn eigen kenmerken (grootte, vermogen, kosten, aantal cycli en levensduur, enz.) Gebruik deze tabel om snel de prijs per nuttige kWh over de levensduur van de batterijen te vergelijken.

C10 = onderzoek van een lading of ontlading in 10 uur.
C24 = onderzoek van een lading of ontlading in 24 uur.

Klik hier om onze vergelijkingstabel te bekijken.
