RESIDENTIAL box AC mono

€ 301,10
Inclusief belasting
AC32-APR
0768563817434

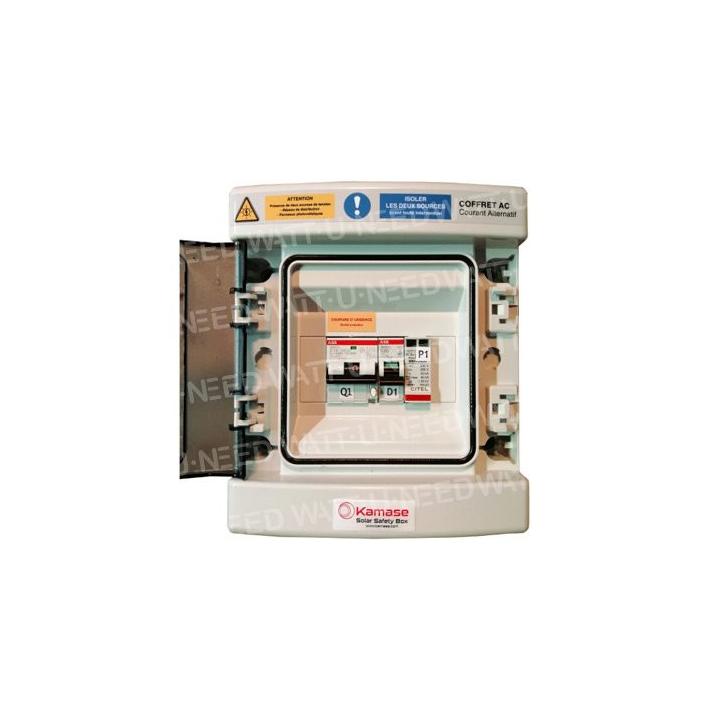

Residential photovoltaic cut-off and protection box for single-phase inverter

RESIDENTIAL box AC mono

€ 301,10

RESIDENTIAL box AC mono



  • Residential photovoltaic cut-off and protection box for single-phase inverter
  • Protection 30mA Type A-APR (high immunity)
  • Parafoudre Type 2

Characteristics



AC BoxAC32-APR
Max output power6400VA
Inverter protectionDifferential breaker Ph/N ABB 30 mA Type A-APR (high immunity) Icc 4.5 kA
Sectionor switch
Protection of the parafoudreBreaker ABB 20A Ph/N Icc 4.5kA
SpdParafoudre Citel AC Type 2 In 20kA - Imax 40kA 2 poles
WiringHO7-VK
EarthEarth Bornier 2x16mm2 - 5x10mm2
OutputCopper only. Output to network up to 16 mm2
Press-to-be1PG21/1PG16 / 4PG9
Protection indexIP 65 - Possible outdoor installation
6 modules: 231 L x 202 l x 113 P mm
8 modules if energy meter option: 231 L x 238 l x 113 P mm
Poinds net1,560 kg



AC32-APR

Specifieke referenties

upc
768563817434
ean13
0768563817434
Nieuw

Downloaden

Coffparafoudre AC mono Kamase-FR

Downloaden (478.95KB)
