• Portrait system in multiples of 2 modules
• 40 nuts and bolts, 1 single size of screws (For any system)
• Assembly in 10 minutes
• 1 Single assembly tool (key of 13)
• Made in France - Factory 4.0

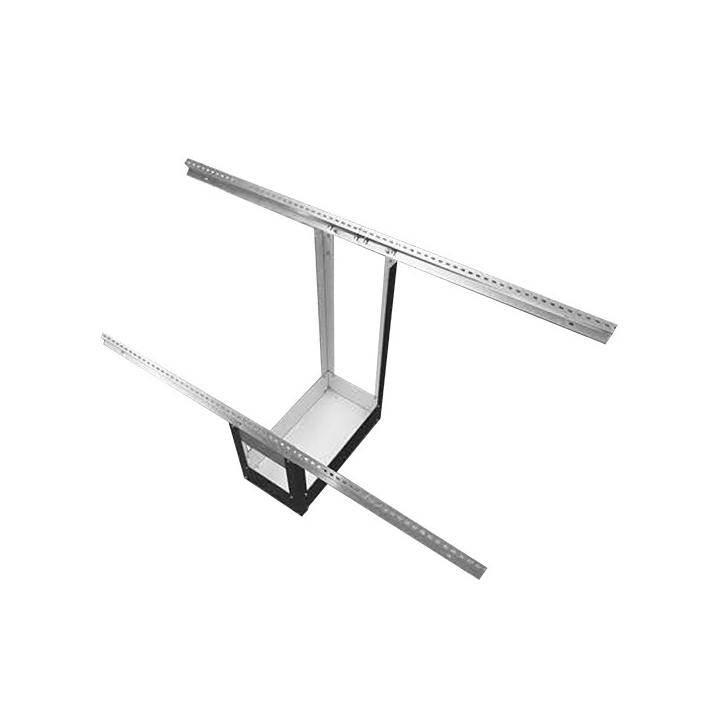

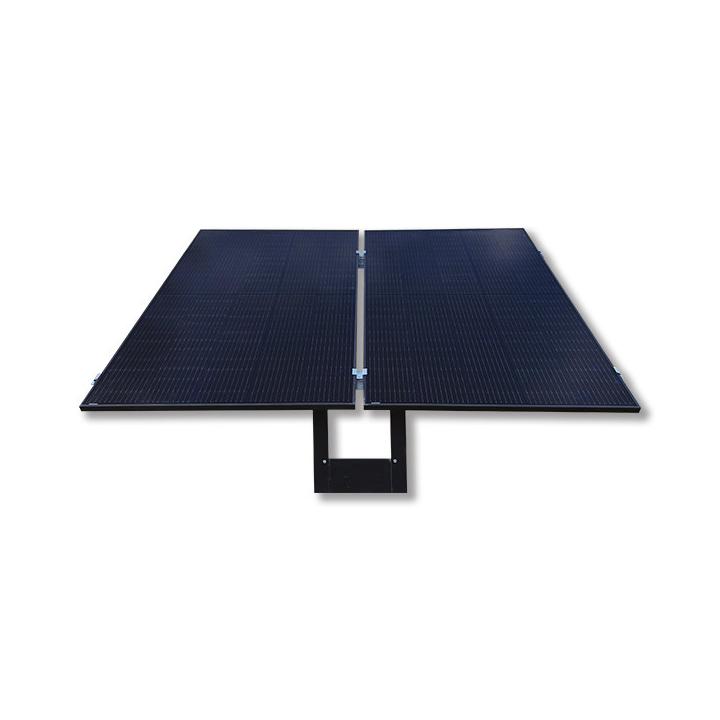

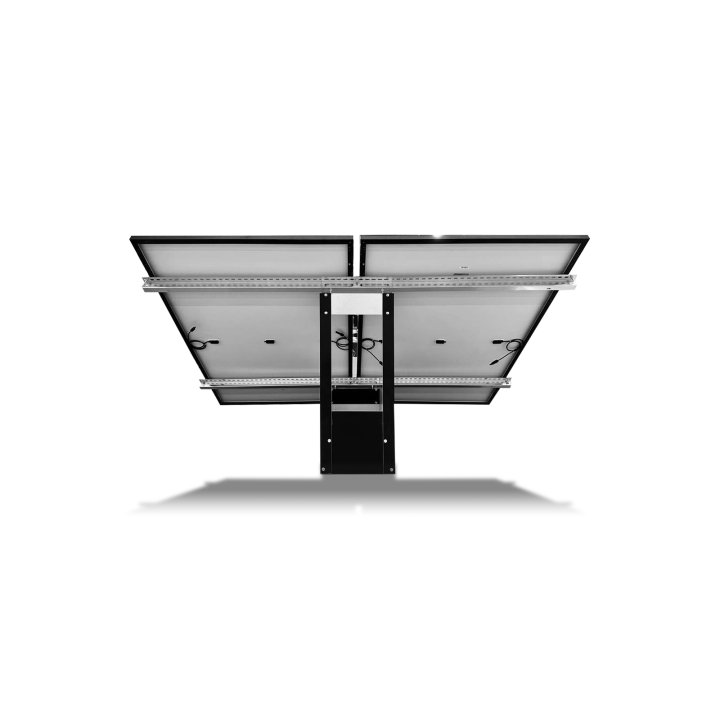

New floor mounting system to be weighted Ultra-fast (+- 10 minutes) and Ultra-simple (1 single assembly tool) with an Ultra-reduced.
• Compatible with all module sizes (max. width 1,150 mm)
• Do not require administrative formalities: (Ground height <1,80m)
• Space saving: Portrait pose for a small footprint
• Easy installation: without ground drilling or specific masonry
• Compatible with all types of soils
Sand = 102.4 kg
Concrete = 140.8 kg
Gravel = 96 to 108.8 kg
Slabs 40/40 x 10un = 140 kg
Configuration | In portrait by multiples of 2 modules |
Inclination | Adjustable to mounting from 7.2° to 38° |
Colour | Black 9005 |
Matter | Galvanized steel & composite aluminum |
Weight without ballast | 8kg / module |
Ballast system | Sand, gravel, cement, slabs, concrete |
Fasteners | Galvanized steel brackets supplied with Z bar |
Security | Does not require working at heights |
Bar size / Available rails | Z bar galvanized steel 2380 mm lagre Compatible with commercial rails |
Compatible panels | Max width 1,150 mm Modules installed in portrait |
