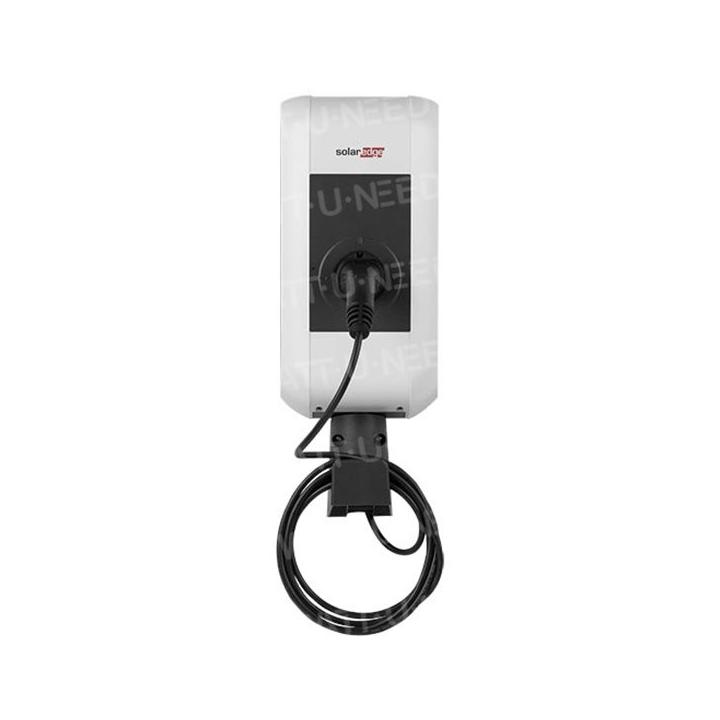

SolarEdge Home EV Charger 3PH 22kW
€ 2.459,00
Belasting inbegrepen
SE-EVK22C00-01
0768563819711
• Charging power up to 22 kW (three-phase)
• 6 m type 2 fixed AC charging cable
• RFID and MID
• Mode 3 charging station, with charging power up to 32A (22kW)
• Suitable for single-phase and three-phase installations, for indoor and outdoor use.
• Uses excess photovoltaic energy to charge electric vehicles through the sun, reducing homeowners' electricity bills*.
• Control and monitoring via the mySolarEdge app, including remote operations, intelligent programming and charge history.
• Part of the SolarEdge all-in-one residential platform, which integrates photovoltaics, battery storage, smart home appliances and electric vehicle charging.
• Authentication by RFID card and optional integrated MID counter.
• Compatible with OCPP.
• Includes a built-in 6m EV charging cable with Type 2 connector.
Characteristics
| SPECIFICATIONS | |||
| Rated AC output power | 22 | Kw | |
| Rated current (configurable | 10 / 13 / 16 / 20 / 25 / 32 Single-phase or three-phase | Has | |
| Nominal AC output voltage | 3 x 230 / 400 | V | |
| Network frequency | 50 | Hz | |
| Grounding schemes | TT / TN / IT | ||
| Internal consumption | Inactive: 4 W, plugged in: 5 W, charging: 7 W | W | |
| Charging mode | Mode 3 according to IEC 61851-1 Charge AC | ||
| Surge category | III in accordance with EN 60664 | ||
| Protection class | IP54 | ||
| Protection against mechanical shocks | IK08 | ||
| Nominal short-circuit current | < 10 (effective value in accordance with EN 61439-1) | Ka | |
| Differential circuit breaker | > 6 (characteristic according to IEC 62955, < 10 s) | my | |
| Ventilation | No | ||
| AC TERMINALS | |||
| Power cable | Top, back (flush) | ||
| Type | Spring terminal | ||
Cable section | Rigid / flexible | 0.2 – 16 | mm2 |
| Flexible with a pod that can be with or without plastic sleeve | 0.25 – 10 | mm2 | |
| Stripping length | 12 | mm | |
Power supply connection cross-section | Suggested minimum cross-section | ||
| Rated current 16A | 5 x 2.5 | mm2 | |
| Rated current 32A | 5 x 6.0 | mm2 | |
| Rated temperature | 105 | °C | |
| CABLE / FEMALE SOCKET | |||
| Cable versions | Type 2 cable: up to 32A / 400V AC according to EN 62196-1 and VDE-AR-E 2623-2-2 | ||
| AMBIENT CONDITIONS | |||
| Installation environment | Indoor and outdoor | ||
| Operating temperature@16A | -25 to +50 (excluding direct sunlight) | °C | |
| Operating temperature@32A | -25 to +40 (excluding direct sunlight) | °C | |
| Storage temperature | -25 to +80 | °C | |
| Relative humidity of the air | 5 to 95 (non-condensing) | % | |
| Altitude | Max. 2000 above sea level | m | |
| INTERFACE ETHERNET | |||
| Ethernet 1 | TerminalsLSA+ ® | ||
| Data transfer rate | 10 / 100 / 1000 Mbit/s | ||
| Ethernet 2 | RJ45 (to debug) | ||
| WLAN/WI-FI | |||
| Type | IEEE 802.11 b,g,n, 2.4 GHz | ||
| Supported modes | Ad-hoc Access Point mode, client mode Frequency 2400-2483.5 MHz, EIRP ≤ 20 dBm | ||
| OPTIONS | |||
| RFID card | MIFARE card according to ISO 14443 or ISO 15693 Frequency 13.553-13.567 MHz, EIRP ≤ -7 dBm | ||
| OCPP Server | Pre-configured SolarEdge OCPP server | ||
| CERTIFICATIONS | |||
| EC declaration of conformity | Yes | ||
| MID | Optional, Precision Class B (according to EN 50470-1 / -3) | ||
| DIMENSIONS AND WEIGHT | |||
| Height / Width / Depth | 643 / 240 / 142 | mm | |
| Weight | 7.8 | Kg | |
SE-EVK22C00-01
