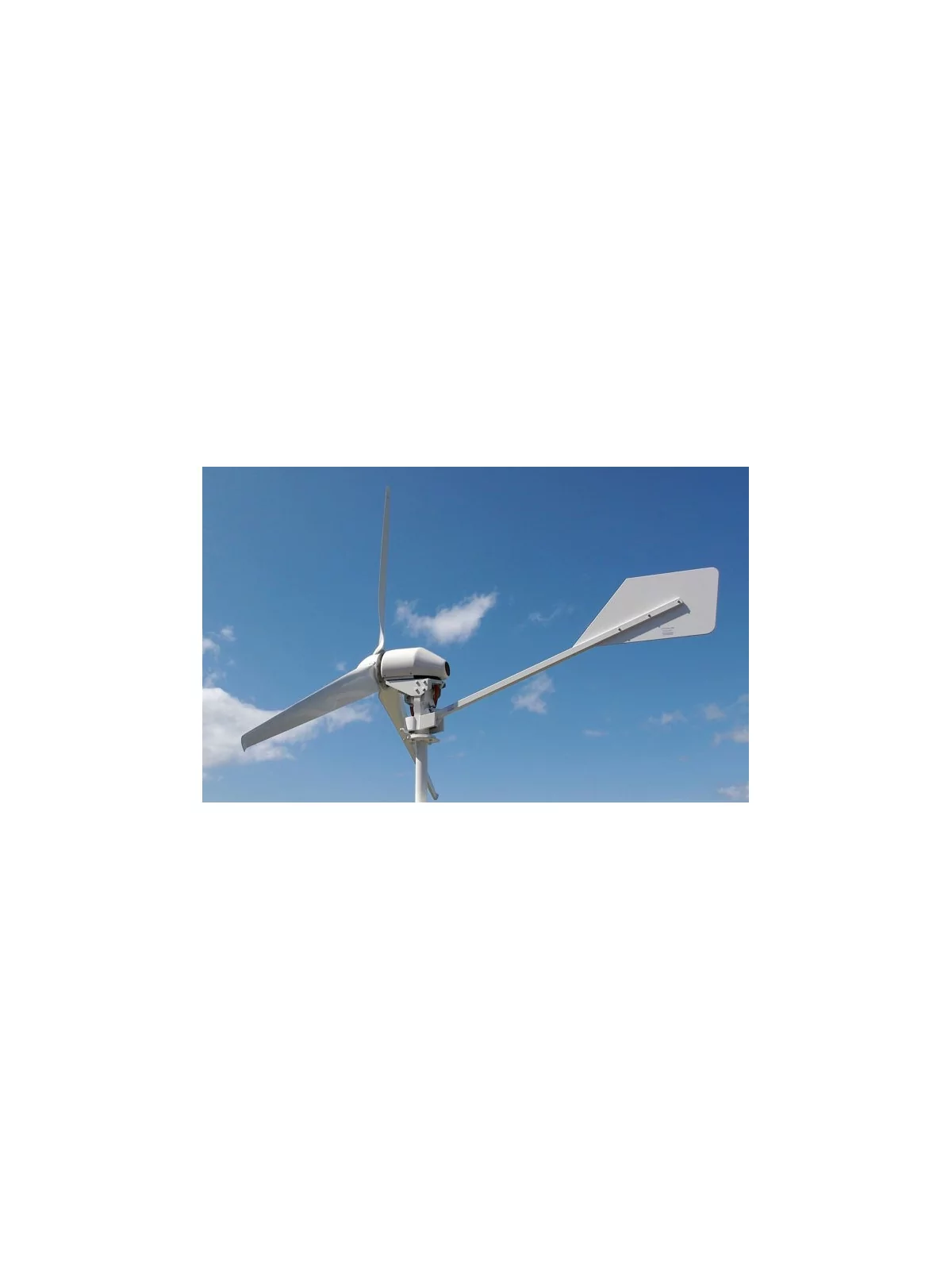

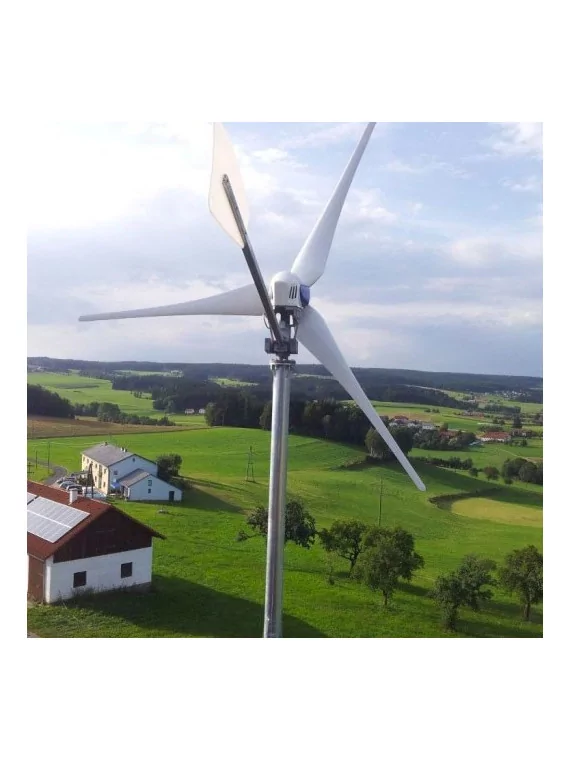

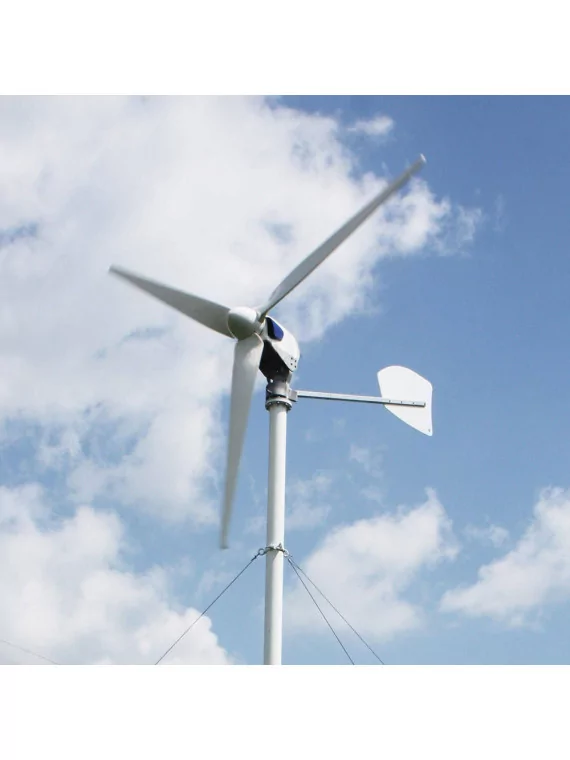

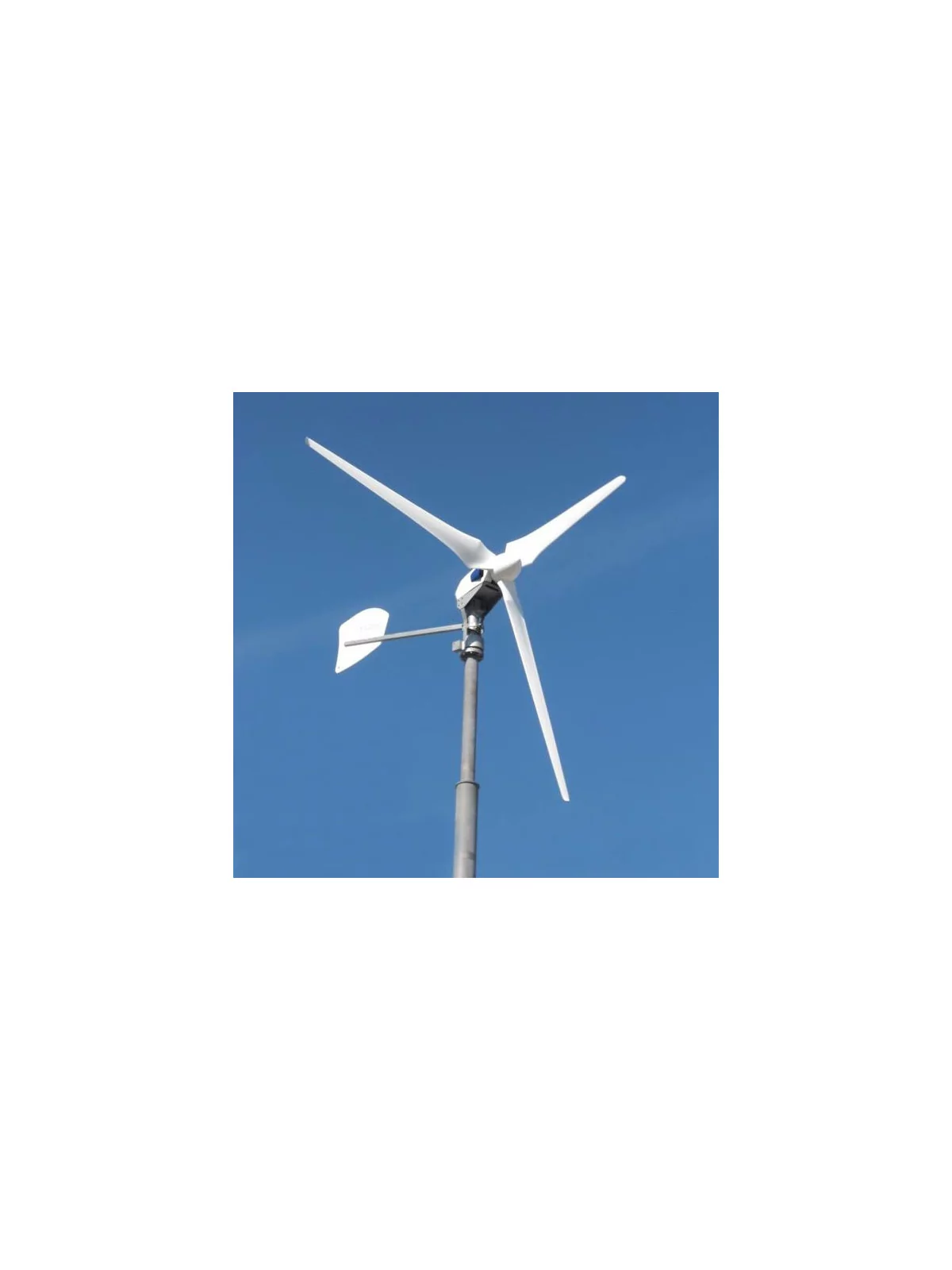

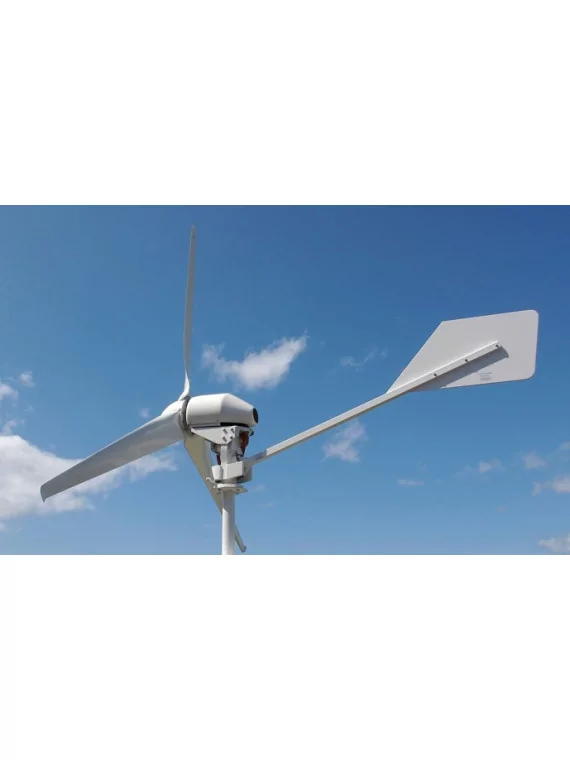

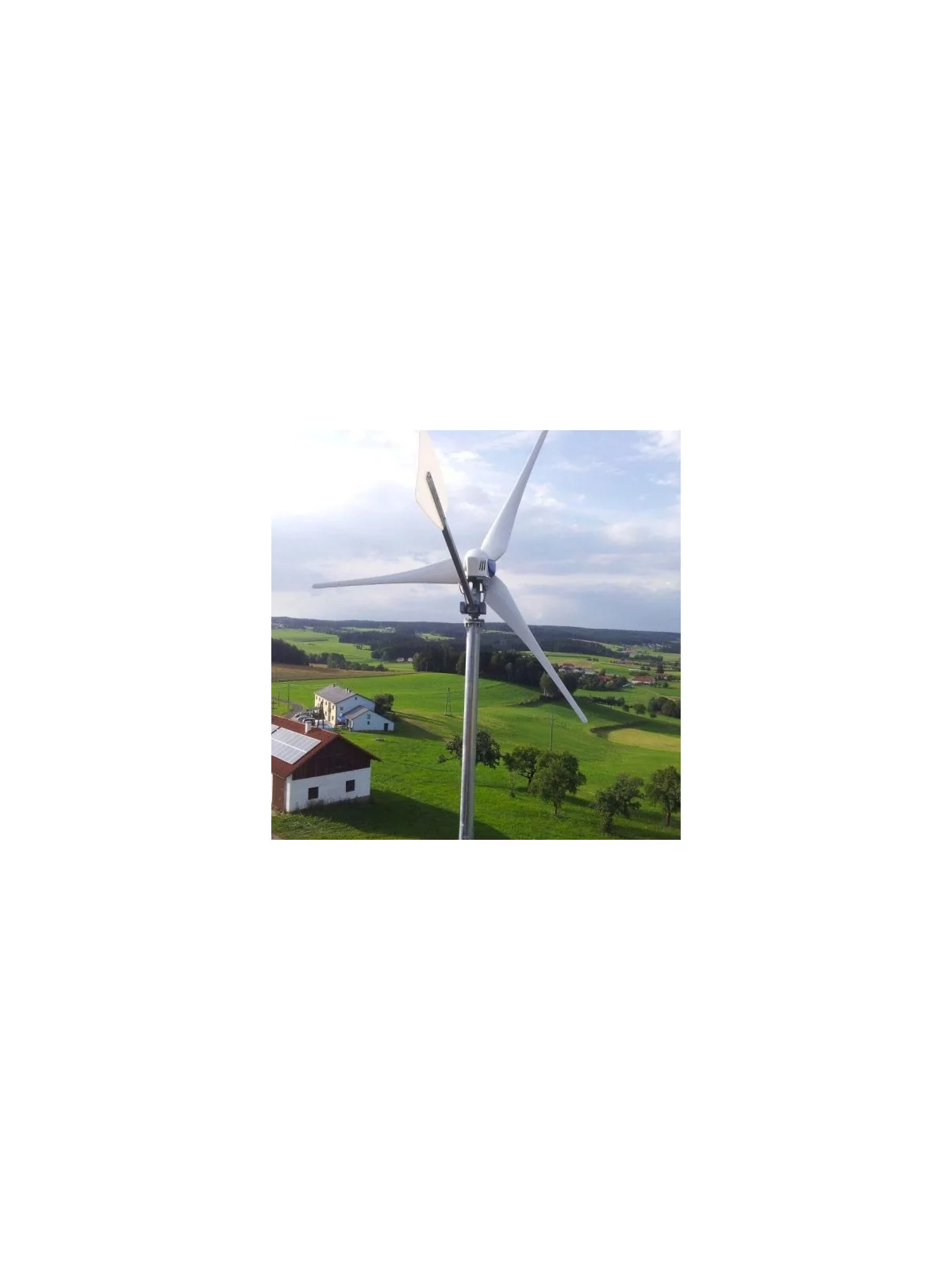

Wind turbine ANTARIS 3.5 kW for standalone site
De krachtige Antaris 3.5Kw windturbine is ontworpen in Duitsland.
Hij is perfect voor een installatie thuis
Braun stand-alone windturbine: 3,5 kW vermogen
Technical features
Generic
- Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
- NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
- Phase
- Separate lifter
- Rotation in both directions
- Tension 0-1000 V
- Starts production at about 100 t/mn
- Power: 6000 watts at 380 t/mn and 400V
- Linear power curve
- Weight: 31kg
- Carter aluminum, cooling of the surface and the fastening base
- Protection IP56
Rotor
- Connection hubs with aluminum strap and overpressure plate
- Stainless steel fitting screws and counter-nuts
- Fiberglass rotor blades and laminated carbon fiber
- Computer-designed aerodynamic profile
- Noise reduction on the end of the blades
- 4m in diameter
- Blade weight: 4.3 kg
- Dynamically balanced
- Anti-clockwise rotational sense
- Rotation speed up to 300 t/mn
- GRP spinner cap
- The colour of the rotor of your choice
Chassis
- Weather-resistant HDPE Girouette
- Support element: stainless steel square tube
- All threaded fittings are made of stainless steel and equipped with nuts
- Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
- Protected by a patented rotor-blade positioning system
- Mast adapter with bridle connector (114.3 mm tube)
Storm protection
- Switching the pale rotor to the "helicopter" position
- Electronic control of turbines
Control cabinet
- Control system with voltage monitor
- Electronic control of turbines with regulator
- Connector protections against polarity inversions
- Controlling the phases of the alternator during the turbine mode
- Emergency shutdown switch
- Key switch re-initializer (removable)
- 2 x 3 Kw braking resistance
Monitoring the battery charger in 48 VDC
Smart Power Electronics inverter
MODERN - FLEXIBLE - POWERFUL
Max. 20 kW wind turbine load (SW-10)
Pairing the three-phase network with 10 kW (SW-10)
Flexible and intelligent management of clean power, heating, battery and discharge charges through 4 separate CC energy outlets
Energy counter for power and heating
Control of reactive power
Battery buffer interface - optional
PROFITABLE - SURE
Built-in control functions for a wind turbine Intelligent and finely resolute control of the characteristic curve for optimal wind use
Characteristic curve freely selectable depending on voltage or speed
Many monitoring functions, such as wind speed or speed
Switch to shut down KWEA with other safety features
Compact
Direct connection of the particle generator without additional equipment
Wide range of input voltage for particle generators
Compact design of the case with a separate aperture connection area
Passive convection cooling on a wide range of performance
Integrated network/system protection (NA protection according to VDE AR-N 4105)
Communicative
Built-in graphic display
Built-in web server
Practical PC Smart!wind Explorer use and set-up interface
APPLICATION AREAS
Small wind turbines
Small hydroelectric power plants
Mini-cogeneration
