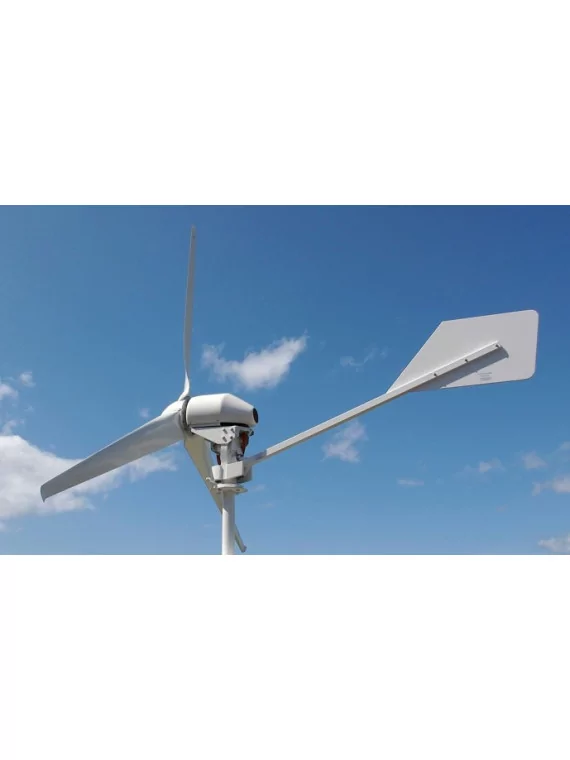

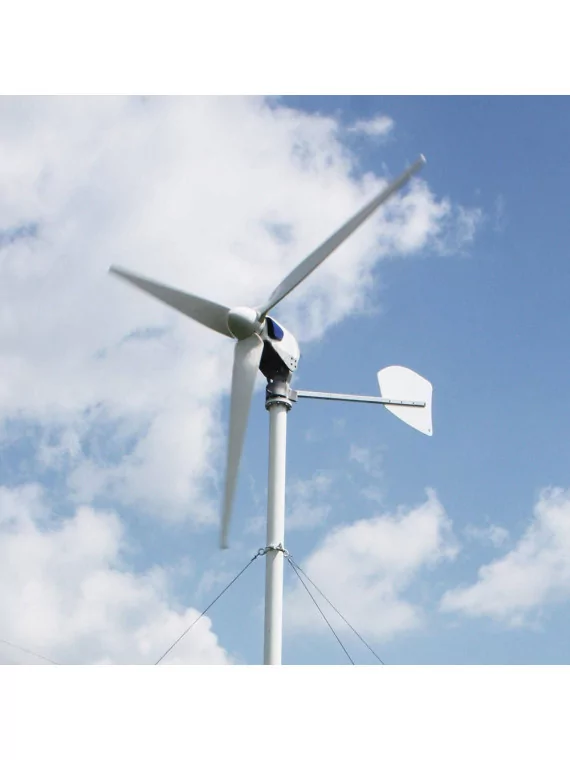

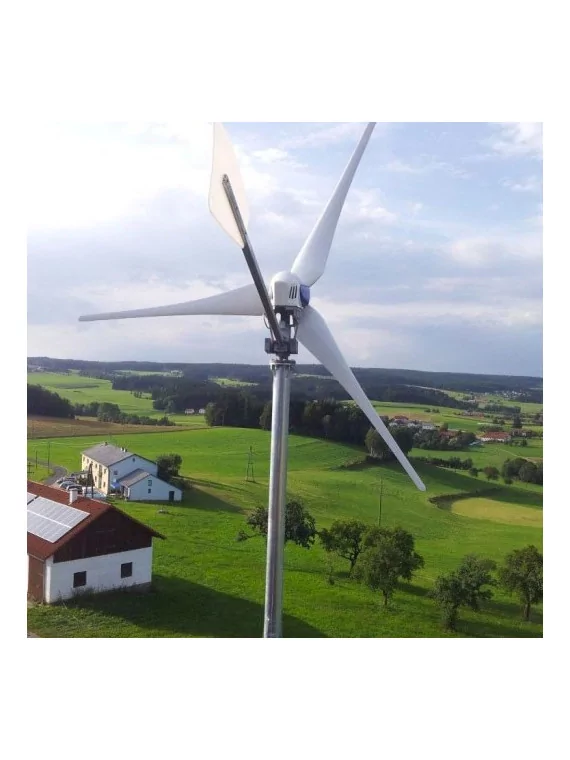

Wind turbine ANTARIS 3.5 kW connected to the grid
€ 17.282,03
Belasting inbegrepen
0289
0768563821486
The high-performance Antaris 3.5Kw wind turbine is designed in Germany.
It's perfect for a home installation
Antaris 3.5 kW: Windenergie binnen handbereik
The Antaris wind turbine is specially adapted to sites inland. It is specially designed for network connection, charging batteries (24VDC / 48 VDC etc.) and powering heating systems. Because of its robust design, the Antaris wind turbine is also suitable for storm-prone locations.
The rotor blades are laminated by hand and benefit from a computer-designed aerodynamic profile, they are also balanced statically and dynamically. Each blade has an identification number and comes with its appropriate documentation. The highest importance has been to ensure the speed and simplicity of installation of this wind turbine.
Thanks to its robust and careful design, the Antaris wind turbine has excellent efficiency and is offered at a highly attractive price. It starts very quickly (starting already at a wind speed of 2.2 m/s) and operates silently (43 dB). This wind turbine can therefore be installed in residential areas.
The connection to the network requires the use of two inverters programmed specifically to operate with Antaris wind turbines as well as according to local wind conditions. In less windy areas, it is possible to connect the wind turbine to the grid via a single inverter. The inverters come with a declaration of compliance. The ENS (Electronic grid guard system) is integrated into the inverter.
Technical features
Generator
- Permanent magnet rotor without brooms and gears. Doesn't require maintenance!
- NdFeBo permanent magnets very powerful for great efficiency, resists up to 150oC
- Phase
- Separate lifter
- Rotation in both directions
- Tension 0-1000 VDC
- Starts production at about 100 t/mn
- Power: 6000 watts at 380 t/mn and 400V
- Linear power curve
- Weight: 31kg
- Carter aluminum, cooling of the surface and the fastening base
- Protection IP56
Rotor
- Connection hubs with aluminum strap and overpressure plate
- Stainless steel fitting screws and counter-nuts
- 3 Carbon rotor blades
- Computer-designed aerodynamic profile
- Noise reduction on the end of the blades
- 4m in diameter
- Blade weight: 3.3 kg
- Dynamically balanced
- Anti-clockwise rotational sense
- Rotation speed up to 300 t/min
- GRP spinner cap
- The colour of the rotor of your choice
Chassis
- Weather-resistant HDPE Girouette
- Support element: stainless steel square tube
- All threaded fittings are made of stainless steel and equipped with nuts
- Steel support for the generator, configured for plug-in in the azimut bearing frame, fully galvanized
- Protected by a patented rotor-blade positioning system
- Mast adapter with bridle connector (114.3 mm tube)
Storm protection
- Switching the pale rotor to the "helicopter" position
- Electronic control of turbines
Control cabinet
- Control system with voltage monitor
- Electronic control of turbines with regulator
- Connector protections against polarity inversions
- Controlling the phases of the alternator during the turbine mode
- Emergency shutdown switch
- Key switch re-initializer (removable)
- 2x 3 kW braking resistance
 |  |
Omvormer Smart wind 5kW
Driefasige stroomomvormer voor kleine windturbines
MODERN - FLEXIBEL - KRACHTIG
Max. 20 kW windturbinelading (SW-10)
Driefasige netwerkkoppeling met 10 kW (SW-10)
Flexibel en intelligent beheer van schone stroom, verwarming, acculading en ontlading via 4 aparte CC-energieuitgangen
Energiemeter voor stroom en verwarming
Controle reactief vermogen
Interface voor accubuffer - optioneel
Compact
Directe aansluiting van de deeltjesgenerator zonder extra apparatuur
Breed scala aan ingangsspanning voor deeltjesgeneratoren
Compact ontwerp van de behuizing met apart aansluitgebied voor openingen
Passieve convectiekoeling over een breed vermogensbereik
Geïntegreerde netwerk-/systeembeveiliging (NA-beveiliging volgens VDE AR-N 4105)
RENDABEL - ZEKER
Ingebouwde regelfuncties voor een windturbine Intelligente en fijn afgestelde karakteristiek voor optimaal windgebruik
Karakteristieke curve vrij selecteerbaar afhankelijk van spanning of snelheid
Veel bewakingsfuncties, zoals windsnelheid of snelheid
Schakelaar om de KWEA te stoppen met andere veiligheidsfuncties
Communicatief
Ingebouwd grafisch scherm
Ingebouwde webserver
Smart!wind Explorer PC's handige gebruik en instelling interface
TOEPASSINGSGEBIEDEN
Kleine windturbines
Kleine waterkrachtcentrales
Minikrachtkoppeling
Characteristics
| General data | SW-5.5 |
| Size | 656 x 472 x 234 mm |
| Weight | 42 kg |
| Protective class | IP54 |
| Cooling | Passive air/fan controlled according to demand |
| How it works in the temperature range | -25 degrees Celsius ... -40 degrees Fahrenheit - automatic decommissioning |
| Global efficiency | No more than 94%. |
| Clean consumption | 18 W - Waiting |
| 83 W - Active offer | |
| Entry generator side | |
| Generator type | excited constantly / 3 phases |
| Generator-side lifter | B6 |
| Entry voltage range (driver-driver) | 60...500 VLL |
| Entry current (nominal value) | 180 ... 500 VLL - for a total power of 5.5 kW |
| Entry power | 600 VLL - maximum |
| Maximum value limited by load resistance | 20 A - face value |
| Frequency of entry | 40 A - max. 5 s |
| Monitoring generators | 12 kW - face value |
| 24 kW - max. 5 s | |
| Exit sector side | 0 Hz ... 150 Hz |
| Inverter sector side | Isolation control |
| Number of phases | Temperature control |
| Output power (nominal value) | Speed control |
| Exit tension | |
| Inverter sector side | IGBT B6 |
| Number of phases | 3 |
| Output power (nominal value) | 5.5 kW |
| Exit tension | 400 VLL - face value |
| 318 ... 460 VLL - eligible reach | |
| Outfed current (nominal value) | 0 ... 8 A |
| Exit frequency | 0 Hz ... 150 Hz |
| Separation concept | without transformer - no galvanic insulation |
| Current distortion factor | 3% |
| Power factor - cos | regulated to 1 - regulation according to VDE AR-N 4105 |
| Resistance to short circuits | Current control |
| Network/system protection - ENS | VDE AR-N 4105 |
